Welds steel assemblies (carbon and carbon-manganese)
Length: 350mm
Electrode diameter: 3.2 mm
Welding thickness: 5 to 8 mm
Welding power setting: 110Amp (90 to 140A)
Easy arc striking and re-striking
Multiple positions
Arc striking voltage: 70V DC
Connect the electrode holder to the + of the unit for root pass
Connect the electrode holder to the - of the unit for fill pass
Classification:
EN ISO: 2560-A
AWS A 5.1: E 7018-1
DIN 1913: E 42 4 B 4 2 H5
4,58 € tax excl.
Welds steel assemblies (carbon and carbon-manganese)
Length: 350mm
Electrode diameter: 3.2 mm
Welding thickness: 5 to 8 mm
Welding power setting: 110Amp (90 to 140A)
Easy arc striking and re-striking
Multiple positions
Arc striking voltage: 70V DC
Connect the electrode holder to the + of the unit for root pass
Connect the electrode holder to the - of the unit for fill pass
Classification:
EN ISO: 2560-A
AWS A 5.1: E 7018-1
DIN 1913: E 42 4 B 4 2 H5
Description
Universal basic electrode for welding steel assemblies (carbon and carbon-manganese) under high stress (tensile strength up to 560 MPa). It is characterised by excellent mechanical properties, particularly at low temperatures.
Applications
- Pipework
- Pressure vessels
- Shipbuilding
- Offshore platforms
- Quality steel structures

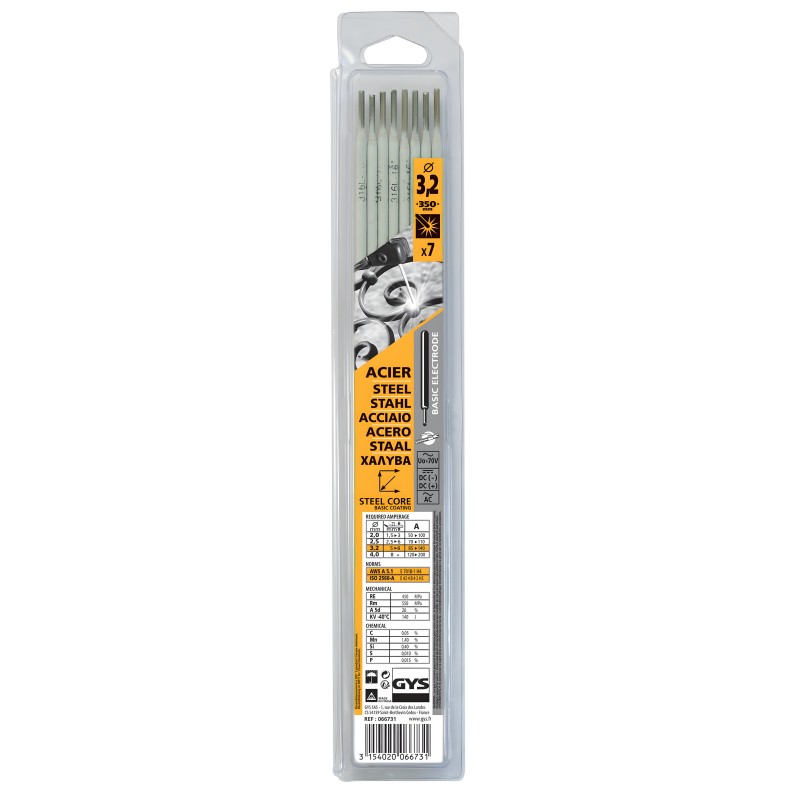

Characteristics of Pack of 7 rutile STEEL electrodes L350 - Ø 3.2 mm GYS
| Material to weld | Steel | Electrode diameter | 3.2 mm |
| Thickness to weld | 5 to 8 mm |
Expert advice for professionals and individuals
Benefit from the support of specialists, whatever your profile.
Secure payment
Your transactions are protected by the latest security technologies.
Express delivery in 24/48 h
Fast dispatch to France, Europe and overseas territories upon confirmation of your order.
Best price guaranteed
Enjoy the most competitive prices on the market all year round.
GEKA
Reference: LOTUS
€30.05
24,83 € tax excl.
Fast delivery
2-year warranty
Rutile electrodes for welding steels
Supplied in cardboard case
AWS Standard A 5.1 - E 6013
ISO Standard 2560-A - E 42 0 RC11
The Ø 2.5 mm electrode pack contains 5 kg, i.e. 270 pieces. Length 350 mm
The Ø 3.2 mm electrode pack contains 5 kg, i.e. 170 pieces. Length 350 mm
The Ø 4 mm electrode pack contains 5 kg, i.e. 115 pieces. Length 350 mm
The Ø 5 mm electrode pack contains 5 kg, i.e. 70 pieces. Length 350 mm
In stock
Soudexpert
Reference: E7018405
€29.25
24,17 € tax excl.
Fast delivery
2-year warranty
BASIC STEEL ELECTRODE E7018
Diameter: 4.0 mm
Rod length: 400 mm
5 kg box
Arc striking from 70V - Direct current. Positive (+) polarity at electrode
Standards: AWS A 5.1: E7018-1
For welding:
- General-purpose structural steels
- Shipbuilding plates
- Boiler and pressure vessel steels
- High yield strength steels
- Heat-resistant steels
- Cold-resistant steels
Applications:
- Heavy structural steelwork
- Frames
- Marine
- Pressure vessels
In stock
Soudexpert
Reference: E6013321
€7.86
€13.10
6,50 € tax excl.
Fast delivery
2-year warranty
Universal rutile steel electrode CURRENT E6013
Diameter: 3.2 mm
Rod length: 350 mm
1 kg box
1 kg equals +/- 32 rods
Arc start from 40V - Direct current. Negative (-) polarity at the electrode
Standards: AWS A 5.1: E 6013
Applications:
- Metal construction
- Pipework
- Locksmithing
- Sheet metal work
- Steel framework
In stock
Gys
Reference: 081482BLIS
€39.33
32,50 € tax excl.
Fast delivery
2-year warranty
Pack of 25 Stainless Steel 316L Electrodes - D3.2 mm - L 300mm
Welds stainless steel 316L/308L/304L
Electrode diameter: 3.2 mm
Thickness to weld: 3.2 mm
Welding power setting: 40 to 80 Amp
Multiple positions (except downward)
Fine appearance bead
Good slag detachment
Connect the electrode holder to the + of the machine
Arc starting from 50V
Classification:
EN 1600 : 19123 LR12
AWS 5.4: E 316L-16
In stock
Weldas
Reference: 44-7110
€7.26
6,00 € tax excl.
Fast delivery
2-year warranty
Split leather electrode holder
Capacity 2.3 kg
In stock
Magmaweld
Reference: ESR1132K1
€12.04
€15.05
9,95 € tax excl.
Fast delivery
2-year warranty
1 kg pack - 32 rods Ø 3.2mm
Arc striking from 40V - Direct current. Negative (-) polarity at the electrode.
Classification:
In stock
Gys
Reference: ELEC-2.5-ACIER-GYS
€18.66
15,42 € tax excl.
Fast delivery
2-year warranty
GY38 Steel Rutile Electrodes - Ø 2.5mm - L 350mm
Welds steel
Electrode diameter: 2.5 mm
Material thickness: 2.5 to 6mm
Welding power setting: 80Amp
Easy arc striking and re-striking
Multiple positions
Flat, slightly convex beads
Easy slag removal
Connect the electrode holder to the - terminal of the welder
Classification:
AWS A 5.1 : E6013
EN ISO 2560-A : E 420 RC 11
In stock
Soudexpert
Reference: E7018325
€30.25
25,00 € tax excl.
Fast delivery
2-year warranty
BASIC STEEL electrode E7018
Diameter: 3.2 mm
Rod length: 350 mm
5 kg carton
Strike from 70V - Direct current. Positive (+) polarity at the electrode
Standards: AWS A 5.1: E7018-1
For welding:
- General-purpose structural steels
- Naval plates
- Steels for boilers and pressure vessels
- High yield strength steels
- Heat-resistant steels
- Cold-resistant steels
Applications:
- Heavy steel structures
- Frames
- Naval
- Pressure vessels
In stock
Gys
Reference: 081475
€49.40
40,83 € tax excl.
Fast delivery
2-year warranty
Ideal for steels with difficult weldability
Operating temperature of 1000°C
Electrode diameter: 2.5 mm
Weldable thickness: 2.5 mm
Welding power setting: 40 - 80 Amp
Length 300 mm
All-position use
Connect the electrode holder to the + terminal of the machine
Arc striking from 50V
Classification:
EN ISO 3581-A : E 29 9 R
AWS 5.4: E 312-16
In stock
Magmaweld
Reference: ESR1132K5
€27.83
€30.93
23,00 € tax excl.
Fast delivery
2-year warranty
5 kg pack - 165 rods Ø 3.2mm
Easy arc striking and re-striking
Good weldability in all positions
Flat slightly convex beads and easy slag removal
Excellent bead appearance
Arc striking from 40V - Direct current. Negative (-) polarity at the electrode.
Classification:
AWS A 5.1 : E6013
EN ISO 2560-A : E 420 RC 11
In stock
Gys
Reference: 082359
€8.57
7,08 € tax excl.
Fast delivery
2-year warranty
Stainless Steel 316L Electrodes - D2 mm - L 300mm
Welds stainless steel 316L/308L/304L
Electrode diameter: 2 mm
Weldable thickness: 2 mm
Welding power setting: 40 to 70 Amp
Multiple positions (except downhill)
Fine-looking weld bead
Good slag detachment
Connect the electrode holder to the + terminal of the machine
Arc striking from 40V
Classification:
EN 1600 : 19123 LR12
AWS 5.4: E 316L-16
In stock
Gys
Reference: 083349BLIS
€30.20
24,96 € tax excl.
Fast delivery
2-year warranty
Cast Iron Electrodes X9 - L 350mm
Welds cast iron, nodular cast iron and assembly with steel
Electrode diameter: 3.2
Welding thickness: 3.2
Welding power setting: 50 to 90 Amp
Very resistant to cracking
Ideal for repairing casings, engine blocks, casting defects...
Connect the electrode holder to the + terminal of the welder
Arc striking from 40V
Classification:
AWS 5.15 : E Ni Fe CI
EN ISO 1071 : EC NiFe-CI3
DIN 8573 : E Ni Fe BG 13
In stock
Gys
Reference: 066717BLIS
€5.54
4,58 € tax excl.
Fast delivery
2-year warranty
Welds steel assemblies (carbon and carbon-manganese)
Length: 300mm
Electrode diameter: 2 mm
Weldable thickness: 1.5 to 3 mm
Welding power setting: 45A (20 to 50A)
Easy to strike and re-strike
Multiple positions
Ignition voltage: 70V DC
Connect the electrode holder to the + terminal for root pass
Connect the electrode holder to the - terminal for fill pass
Classification:
EN ISO: 2560-A
AWS A 5.1: E 7018-1
DIN 1913: E 42 4 B 4 2 H5
In stock
Gys
Reference: 084315BLIS
€4.54
3,75 € tax excl.
Fast delivery
2-year warranty
Welds steel
Length: 300mm
Electrode diameter: 1.6 mm
Welding thickness: 1.5 mm
Welding power setting: 40A
Easy to strike and re-strike
Multiple positions
Flat, slightly convex beads
Easy slag removal
Connect the electrode holder to the - terminal of the welding machine
Classification:
AWS A 5.1: E6013
EN ISO 2560-A: E 420 RC 11
In stock
Gys
Reference: 082328
€9.62
7,95 € tax excl.
Fast delivery
2-year warranty
Pack of 10 Stainless Steel 308L electrodes - D2.5 mm - L 300mm
Welds stainless steel 308L
Electrode diameter: 2.5 mm
Weldable thickness: 2.5 mm
Welding power to set: 40 - 80A
Multiple positions (except downhill)
Clean, attractive weld bead
Good slag detachment
Connect the electrode holder to the + terminal of the machine
Arc striking from 60V
Classification:
EN 14343-A : W 19 9 L
AWS 5.9: ER308L
In stock
Soudexpert
Reference: E6013205
€19.36
€32.27
16,00 € tax excl.
Fast delivery
2-year warranty
Universal rutile STEEL electrode E6013
Diameter: 2 mm
Rod length: 300 mm
Carton of 5 kg
5kg equals +/- 470 rods
Arc ignition from 40V - Direct current. Negative (-) polarity at the electrode
Standards: AWS A 5.1: E 6013
Applications:
- Metal construction
- Piping
- Locksmithing
- Sheet metal work
- Steel framing
Welds steel assemblies (carbon and carbon-manganese)
Length: 350mm
Electrode diameter: 3.2 mm
Welding thickness: 5 to 8 mm
Welding power setting: 110Amp (90 to 140A)
Easy arc striking and re-striking
Multiple positions
Arc striking voltage: 70V DC
Connect the electrode holder to the + of the unit for root pass
Connect the electrode holder to the - of the unit for fill pass
Classification:
EN ISO: 2560-A
AWS A 5.1: E 7018-1
DIN 1913: E 42 4 B 4 2 H5
