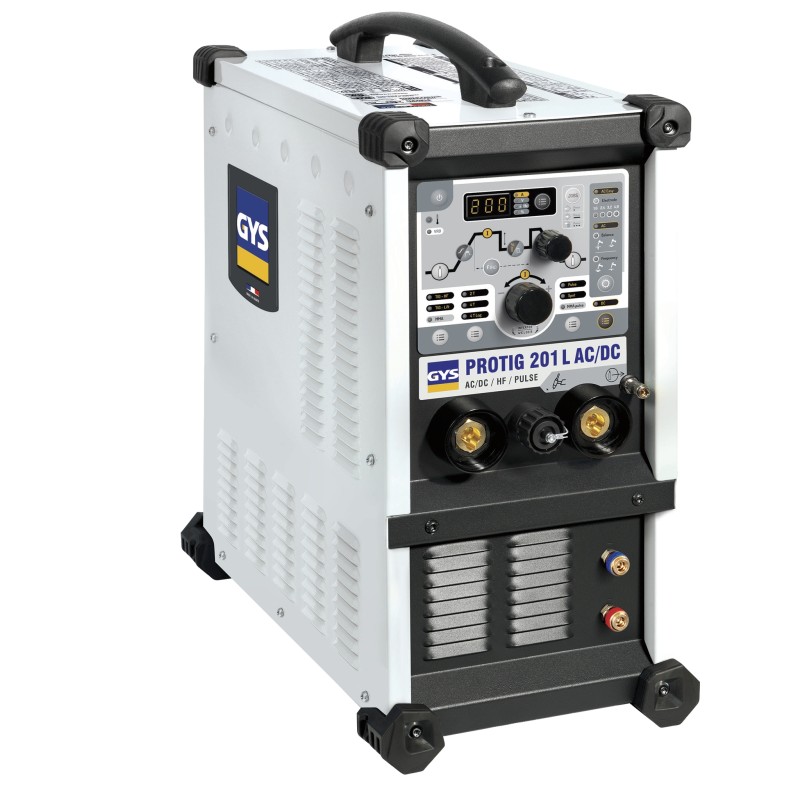

GYS PROTIG 201L AC/DC HF PFC welding machine without accessories

The PROTIG 201 AC/DC represents the professional TIG welding solution for joining all types of materials up to 4 mm thick (steel, stainless steel, aluminium, copper or titanium).
It offers very high precision in many fields such as craftsmanship, maintenance or pipework.
Equipped with a water cooling unit, it allows the use of more ergonomic TIG torches

6 TIG AC/DC welding processes

TIG DC: Ensures quality welding on all ferrous materials such as steel, stainless steel, as well as copper and its alloys, titanium…
Pulsed TIG DC: Controls the temperature of the weld pool, limits deformation and thus allows the joining of thin sheets from 0.3 mm.
TIG DC Spot: Pre-assembles ferrous metal parts by tack welding

TIG AC Easy: Simplifies the use of the welding unit thanks to predefined parameters. The user only selects the diameter of their tungsten electrode on the interface
TIG Standard: Dedicated to welding aluminium and its alloys (Al, AlSi, AlMg, AlMn…). Alternating current ensures preliminary cleaning of the aluminium for a quality weld.
TIG AC Spot: Pre-assembles aluminium parts by tack welding.

2 stick electrode welding modes

MMA Standard: Accepts basic, rutile electrodes up to Ø 4 mm
Pulsed MMA: Facilitates vertical up-position welding (pipe fittings/pipeline...).

User assistance for the welder

2 arc ignition types: HF non-contact or LIFT for electrosensitive environments
3 trigger modes: - 2T: maintain pressure on the trigger throughout the weld.
- 4T: to start welding, hold the trigger once then press again to stop welding.
- 4T "LOG": the operator can switch between 2 welding currents at any time with a brief pulse on the trigger (hot current and cold current)

MMA welding assistance: - Anti-sticking: reduces the risk of electrode sticking when in contact with the workpiece
- Hot Start: facilitates arc striking and can be adjusted according to the type of metal
- Adjustable Arc Force: regulates arc length variations

VRD (voltage reduction device): welding current is delivered only when the electrode is in contact with the workpiece (not activated by default).

• Memory for up to 50 programs per process
• Connectivity for remote controls (foot pedal, manual remote control)
• Current/voltage display after welding (verification of compliance with WPS/WPQR)
• Reinforced casing and anti-shock pads

Unit delivered without accessories

The PROTIG 230 AC/DC FV is a high-performance, compact and portable TIG AC/DC and MMA welding machine, ideal for demanding work on site as well as in the workshop.

It can weld all types of materials up to 4 mm thick: steel, stainless steel, aluminum, copper, magnesium, titanium, etc. Thanks to its PFC technology, it operates over a wide voltage range (85 V to 265 V) and guarantees a stable electric arc, even with a 100-meter extension cord.

5 TIG welding modes:

- DC Standard: for ferrous metals

- Pulsed DC: limits heat buildup, perfect for thin sheets

- AC Standard: for aluminum and its alloys

- Pulsed AC: ideal for thin aluminum

- AC Easy: simplified mode with automatic settings (electrode diameter selection only)

Advanced TIG functions:

- SPOT mode: quick tacking before welding

- HF or LIFT ignition: to adapt to all environments

- Trigger controls: 2T, 4T and 4T LOG

- Automatic torch detection: compatible with flex-head and double-button torches

- Compatible with basic and rutile electrodes up to Ø4 mm

- Pulsed MMA: ideal for vertical welding (e.g.: pipework)

Integrated aids:

- Adjustable Hot Start: easier arc ignition

- Arc Force: temporary current boost for difficult welds

- Antisticking: prevents electrode sticking

Designed for productivity

- Up to 30 memorizable programs per process

- Advanced menu for precise control

- Current/voltage display during and after welding (DMOS/QMOS)

- Reinforced chassis with anti-shock pads

- Compact and easy to transport

- Smart fan: reduces power consumption, noise and dust

- Overvoltage protection up to 400 V (PROTEC 400 technology)

Rogue ET181i is a DC HF-start TIG and MMA welding machine built with the latest inverter technologies to guarantee an extremely stable welding arc, ideal for working on steel, stainless steel, brass, cast iron...

The electronic boards of the Rogue ET181i are protected by a special coating that insulates them from moisture and dust (IP23S protection). The body is very robust and the dimensions are compact in order to allow the operator to transport and use this welding machine in a workshop or on a job site even in adverse environmental conditions.

The Rogue ET181i can generate a maximum welding current of 180 A and has a duty cycle of 116 A at 60%; these characteristics make this welding machine ideal for installation, maintenance and light metalwork.

The control panel of the Rogue ET181i is easy to use and the convenient LCD screen allows the operator to accurately view the welding parameters. From the control panel, it is possible to modify the TIG welding parameters to adapt the process to the needs the operator must face: LIFT or HF trigger mode, pre and post gas, initial and final current, up and down slope, 2T or 4T.

If you use the Rogue ET181i in MMA mode for MMA welding (electrode holder optional), it is possible to select the percentage of Arc-Force and hot start that best suits the welder's operating style; furthermore, from the control panel, it is possible to select the welding mode for CELLULOSE-coated electrodes.

The Rogue ET 181i comes with:

- Instruction manual
- Shoulder strap for transport
- ESAB SR26 TIG torch 4 metres with a grey Cerium tungsten electrode Ø 2.4 mm)
- Ground cable 16mm2 cross-section - length 3 m
- Gas hose with quick connector

This machine replaces the ESAB ROGUE ET180i model and additionally features the PULSE function compared to that previous model.

The Pulse function of the Rogue allows welders to better control heat input and arc stability. The controlled pulse action helps create a stable arc, avoiding excessive spatter and minimizing the risk of weld defects or the need for post-weld cleaning. The Rogue's Pulse technology facilitates penetration and fusion in the welding process, which is essential for creating strong and durable weld beads and for ensuring the structural integrity of manufactured components. Pulse technology helps minimize the heat-affected zone, thereby reducing the likelihood of material distortion or unforeseen metallurgical changes.

The Sprinter T is a compact and lightweight welding machine (under 9 kg) delivering 200 A for all electrode types up to 4 mm. Versatile, it offers MMA, HF TIG and pulsed TIG welding, with dual voltage 120/230 V and an intuitive interface, ideal for any maintenance, fabrication or light construction project

The TITANIUM 230 AC/DC FV is a single-phase TIG AC/DC welding generator. Smart and connected, it offers extremely precise arc control and industrial welding performance up to 230 A (16 A fuse) thanks to its integrated power factor corrector. It combines excellent ergonomics and an exceptional user experience with advanced welding functions

6 TIG WELDING MODES
DC Standard: welding with smooth current on most ferrous materials.
DC Pulsed: allows parts to be assembled while limiting heat input (pulses up to 2.5 kHz).
FastPulse: pulses up to 20 kHz on special steels.
AC Standard: welding of aluminium and its alloys (Al, AlSi, AlMg, AlMn, etc.).
AC Pulsed: precise penetration control based on AC frequency setting (pulses up to 500 Hz).
AC Mix: alternating AC and DC current to increase welding speed

TIG WIZARD SOLUTION
Patented synergic mode for maximum productivity with tacking and welding of Aluminium, Steel, Stainless Steel and Copper parts with or without filler metal.
5 joint types: Butt (BW), Fillet (FW), Inside corner (BP), Outside corner and wire splicing.
Wizard Lab for performing complex welding cycles

OPTIMIZED SETTINGS
4 tacking modes:
- Spot / Multi Spot: traditional tacking prior to welding thin sheet metal.
- Tack / Multi Tack: ultra-precise, oxidation-free tacking reducing the risk of distortion.
3 arc ignition types: Lift, HF and Touch.HF (timed high-frequency ignition).
3 trigger modes: 2T, 4T and 4T LOG
AC waveform shaping settings for improved arc control and penetration.
E-TIG mode ensures the welder maintains the correct welding power regardless of the torch position relative to the workpiece (welding energy control).

MAXIMUM CONNECTIVITY
Precisely measured energy input.
Traceability of all weld beads in accordance with EN 3834 standard.
Welding accessory calibration mode (refines energy calculation).
Connectable via an optional kit (037960) for use on a robot.
User mode to share the product with multiple welders.
Free online tool available for interface customization.
Save, from a USB key, user JOBs (500 max.) as well as machine configuration.
Compatible with lamellar, double-button, potentiometer and Up & Down torches.
Complete machine and synergy update via USB key.
Remote controls (foot pedal or manual, optional) connectable without tools.
MMA, MMA AC and Pulsed MMA modes (electrodes weldable up to Ø 8 mm).
VRD (Voltage Reduction Device) activatable to lower the no-load output voltage to < 35 V.
"FV" technology guarantees a consistently stable electric arc even in the event of mains voltage variations (85 to 265 V), generator power supply or use of very long power cables.

The PROTIG 231 DC FV is a pulsed DC TIG welding generator, very compact and portable. Its PFC technology allows it to operate from 85 V to 265 V and to achieve a very stable electric arc even on 100 m site extension cords. In stick welding, its Pulsed MMA mode facilitates vertical-up welds.

OPTIMIZED DC WELDING
Secondary regulation: ensures optimal arc stability and constant current in all positions.
- DC TIG: ensures quality welding on all ferrous materials such as steel, stainless steel but also copper and its alloys.
- Pulsed DC TIG up to 2 kHz: controls the temperature of the weld pool, limits distortion and allows the assembly of thin sheets from 0.3 mm.
- Adjustable SPOT from 0.1 to 25 sec: fast and precise tacking before welding thin sheets.
- 2 ignition types: HF non-contact or LIFT contact for electrosensitive environments.
- 3 trigger modes: 2T, 4T and 4T LOG. Automatic torch detection: compatible with blade, double-button and potentiometer torches
- 2 tacking modes: - Spot: adjustable tacking from 0.1 to 60 seconds before welding.
- Pulse: adjustable tacking from 0.01 to 60 seconds on thin sheet before welding

MMA WELDING
MMA: Basic and Rutile electrodes (up to Ø 5 mm).
Pulsed MMA: facilitates vertical-up welding (pipes/pipeline…).
3 integrated welding aids:
- Anti-sticking: reduces the risk of electrode sticking when in contact with the workpiece
- Hot Start: facilitates arc ignition and is adjustable in seconds depending on the metal type
- Arc Force: momentary increase in current in difficult welding situations.

MAXIMUM PRODUCTIVITY
Advanced secondary regulation for optimal arc stability and constant current in all positions.
Memory of up to 50 programs per process for repetitive tasks.
Advanced menu for optimal welding control.
Current and voltage display during and after welding (DMOS/QMOS) Automatic torch detection: compatible with blade, double-button, potentiometer and Up&Down torches.
Remote controls (foot pedal or manual, optional) connectable without tools.
VRD activatable via an internal switch to lower the no-load output voltage to < 35 V.
Intelligent fan management to reduce power consumption, dust intake and machine noise.

IDEAL ON SITE
Accepts extension cords up to 100 m.
Reinforced casing and anti-shock pads.
Compact and easily movable on site.
Protected against overvoltages up to 400 V (PROTEC 400)

delivered with

SR 26DB torch

25mm² 2m ground clamp

25mm² 2m electrode holder

The TITANIUM 230 AC/DC FV is a single-phase TIG AC/DC welding generator. Intelligent and connected, it offers extremely precise arc control and industrial welding performance up to 230 A (16 A fuse) thanks to its integrated power factor corrector. It combines excellent ergonomics and an exceptional user experience with advanced welding functions

6 TIG WELDING MODES
DC Standard: welding with smooth current on the majority of ferrous materials.
DC Pulsed: allows parts to be assembled while limiting heat input (pulses up to 2.5 kHz).
FastPulse: pulses up to 20 kHz on special steels.
AC Standard: welding of aluminium and its alloys (Al, AlSi, AlMg, AlMn, etc).
AC Pulsed: precise control of penetration according to the AC frequency setting (pulses up to 500 Hz).
AC Mix: alternation of AC and DC current to increase welding speed

TIG WIZARD SOLUTION
Patented synergic mode for maximum productivity with tacking and welding of Aluminium, Steel, Stainless Steel and Copper parts with or without filler metal.
5 joint types: Butt weld (BW), Fillet weld (FW), Inside corner (BP), Outside corner and wire splicing.
Wizard Lab for the creation of complex welding cycles

OPTIMISED SETTINGS
4 tacking modes:
- Spot / Multi Spot: traditional tacking before welding thin sheet metal.
- Tack / Multi Tack: ultra-precise tacking without oxidation reducing the risk of distortion.
3 arc start types: Lift, HF and Touch.HF (timed high-frequency arc start).
3 trigger modes: 2T, 4T and 4T LOG
AC waveform settings favouring arc control and penetration.
E-TIG mode ensures the welder maintains the welding power regardless of the torch position relative to the workpiece (welding energy control).

MAXIMUM CONNECTIVITY
Precisely measured energy input.
Traceability of all weld beads in accordance with EN 3834 standard.
Welding accessories calibration mode (refines energy calculation).
Connectable via an optional kit (037960) for use on a robot.
User mode to share the product with multiple welders.
Free online tool available for interface customisation.
Save, from a USB key, user JOBs (500 max.) as well as machine configuration.
Compatible with lamellar, double button, potentiometer and Up & Down torches.
Full machine and synergy update via USB key.
Remote controls (foot pedal or manual, optional) connectable without tools.
MMA, MMA AC and Pulsed MMA modes (electrodes weldable up to Ø 8 mm).
VRD (Voltage Reduction Device) activatable to lower the no-load output voltage to < 35 V.
«FV» technology guarantees a consistently stable electric arc even in the event of variations in mains voltage (85 to 265 V), generator power supply or use of a very long power cable.

Unit supplied with:

1 Koolweld 1 cooling unit
1 earth cable LENGTH 4 M + Croco T400.70 clamp
1 TIG PRO 26B torch length 8 m.

Ultra-compact and designed for craftsmen, the PROTIG 161 DC HF (160 A) delivers high-quality welds on mild and stainless steels thanks to its advanced secondary regulation. Its intuitive interface makes parameter adjustment straightforward.

OPTIMISED DC WELDING
Secondary regulation: ensures optimal arc stability and constant current in all positions.
TG DC: ensures quality welding on all ferrous materials such as steel, stainless steel, but also copper and its alloys…
TIG DC Pulsed: controls the temperature of the weld pool, limits distortion and thus allows the joining of thin sheets from 0.3 mm.
SPOT: fast and precise tacking before welding thin sheets.
2 ignition types: HF non-contact or LIFT contact for electrosensitive environments.
3 trigger modes: 2T, 4T and 4T LOG.
Automatic torch detection: compatible with blade and double-button torches

MMA WELDING
MMA: Basic and Rutile electrodes (up to Ø 4 mm)
Pulsed MMA: facilitates upward vertical position welding (pipes/pipeline…)
3 integrated welding aids:
- Antisticking: reduces the risk of electrode sticking upon contact with the workpiece
- Hot Start: facilitates arc ignition and is adjustable in seconds depending on the metal type
- Arc Force: temporary current increase in difficult welding situations.

INTUITIVE
Current and voltage display during and after welding (WPS/WPQR).
Memorisation of 10 programs per process for perfect reproducibility of your welds.
Intelligent fan management to reduce power consumption, dust intake and machine noise.

→ Supplied with:
1 TIG torch SR17 DB - 4 m, + accessories *
1 electrode holder and earth clamp with 25 mm² section cable, length 2 m.

* 1 electrode holder Ø 1.6 and 2.4 mm
1 diffuser for electrode Ø 1.6 and 2.4 mm
1 ceramic nozzle GR7 and GR5
1 long cap and 1 short cap

The PROTIG 201L AC/DC is the professional TIG welding solution for joining all types of materials up to 4 mm thick (steel, stainless steel, aluminium, copper or titanium).
It offers very high precision across many fields such as craftsmanship, maintenance and pipework.
Equipped with a water cooling unit, it allows the use of more ergonomic TIG torches

6 TIG AC/DC welding processes

TIG DC: Ensures quality welding on all ferrous materials such as steel, stainless steel, as well as copper and its alloys, titanium…
Pulsed TIG DC: Controls the temperature of the weld pool, limits distortion and thus enables the joining of thin sheet metal from 0.3 mm.
TIG DC Spot: Pre-assembles ferrous metal parts by tack welding

TIG AC Easy: Simplifies use of the welding machine thanks to predefined parameters. The user only selects the diameter of their tungsten electrode on the interface
TIG Standard: Dedicated to welding aluminium and its alloys (Al, AlSi, AlMg, AlMn…). Alternating current ensures preliminary cleaning of aluminium for a quality weld.
TIG AC Spot: Pre-assembles aluminium parts by tack welding.

2 coated electrode welding modes

MMA Standard: Accepts basic and rutile electrodes up to Ø 4 mm
Pulsed MMA: Facilitates vertical upward position welding (tubes/pipeline...).

Usage assistance for the welder

2 ignition types: HF contactless or LIFT for electrosensitive environments
3 trigger management modes: - 2-stroke: hold the trigger throughout the weld.
- 4-stroke: to start welding, hold the trigger once then press it again to stop welding.
- 4T "LOG": the operator can switch at any time between 2 welding currents with a brief trigger pulse (hot current and cold current)

MMA welding assistance: - Antisticking: reduces the risk of electrode sticking when in contact with the workpiece
- Hot Start: facilitates arc ignition and is adjustable according to metal type
- Adjustable Arc Force: regulates arc length variations

VRD (voltage reduction device): welding current is delivered only when the electrode is in contact with the workpiece (not activated by default).

• Memorization of up to 50 programs per process

• Current/voltage display after welding (verification of compliance with WPS/WPQR)
and Connectivity for remote controls (foot pedal, manual remote control)

Machine delivered with:
1 SR20 DB torch length 4 m
1 earth clamp + cable length 2 m
1 electrode holder + cable length 2 m

This inverter technology unit makes electrode welding easier thanks to direct current and its low power consumption
(230V-16A power supply).

It has an adjustment range of 10 to 170 A.
The digital amperage display allows you to be more precise in your work.

TIG welding allows you to weld thin thicknesses that you could not achieve with an electrode in MMA mode.

Welding possible on steel, stainless steel, copper, nickel... from 0.5 mm thickness.

TIG welding mode requires the use of a shielding gas during the welding operation (pure Argon).

Arc striking is achieved by touching the tip of the tungsten electrode to the metal workpiece and lifting it slightly to create the welding arc (TIG-LIFT striking method).

It features protection (+/- 15% variation) against electrical overloads, allowing it to be powered by a generator. However, the generator must supply a stabilized current.

Equipped with the following systems:
HOT START to facilitate arc striking, ANTI-STICKING which eliminates the problem of the electrode sticking to the workpiece, and ARC FORCE which increases the arc power when the welding arc is kept short.
VRD: This device reduces the voltage when the welding unit is switched on but not in welding mode; it thus ensures the welder's safety should they accidentally touch the electrode.

Supplied in a carry case with:

1 TIG torch 110 A with valve, gas opening valve on the torch; length 4 m.
This torch is fitted with a ceramic nozzle and a tungsten electrode Ø 1.6 mm.
1 flow meter for refillable gas cylinder.
1 MMA electrode holder allowing the use of rutile or basic electrode rods from Ø 1.6 to 4 mm, cable length 3 m.
1 earth clamp + cable length 3 m.

This machine allows welding with tungsten electrodes (TIG welding) steel, stainless steel, copper, nickel ...including aluminium .

It also allows welding with rutile or basic electrodes (MMA welding kit optional).

It features the following functions:

TIG LIFT: Facilitates electrode striking.

TIG HF High frequency CONTACTLESS ignition

TIG 2T/4T (manual or automatic welding)

TIG SPOT allows tacking of parts before welding.

HOT START adjustable: additional starting power for electrodes that are difficult to strike.

SLOPE DOWN adjustable: this system eliminates arc fade, thus preventing the formation of a crater at the end of the weld bead.

ARC FORCE: This process increases the amperage when the welding arc is kept short, which has the effect of increasing penetration and the mechanical strength of the weld bead.

ANTI STICKING: in the case of welding with coated electrodes, prevents electrode overloading and thus preserves its characteristics,

TIG BI LEVEL: two different welding current parameters can be selected during the welding process, PRE-GAS/POST-GAS

( automatically adjusted by the microprocessor according to the current intensity and the welding duration.

VRD: Improves safety during welding operations in damp environments

It also features the PULSE function particularly suited for welding thin plates where low heat input to the workpiece is required and adapted for welding in all positions.
As the pulse frequency increases, arc stability increases and therefore welding precision improves as well.
It also features the EASY PULSE system allowing immediate pulsed mode welding even if the welder is not familiar with TIG welding, thanks to automatic parameter adjustment

THINSPOT function, enabling fast and precise spot welding.

For gas connection of the machine, it is recommended to use fitting 804208.

The PROTIG 201 AC/DC is the professional TIG welding solution for joining all types of materials up to 4 mm thick (steel, stainless steel, aluminium, copper or titanium).
It offers very high precision across many fields such as craftsmanship, maintenance or pipework.
Equipped with a water cooling unit, it allows the use of more ergonomic TIG torches.

6 TIG AC/DC welding processes

TIG DC: Ensures quality welding on all ferrous materials such as steel, stainless steel, but also copper and its alloys, titanium…
Pulsed TIG DC: Controls the temperature of the weld pool, limits distortion and thus allows the joining of thin sheets from 0.3 mm.
TIG DC Spot: Pre-assembles ferrous metal parts by tacking

TIG AC Easy: Simplifies the use of the welding unit through predefined parameters. The user only selects the diameter of their tungsten electrode on the interface
TIG AC Standard: Dedicated to welding aluminium and its alloys (Al, AlSi, AlMg, AlMn…). The alternating current ensures prior cleaning of the aluminium for a quality weld.
TIG AC Spot: Pre-assembles aluminium parts by tacking.

2 coated electrode welding modes

Standard MMA: Accepts basic and rutile electrodes up to Ø 4 mm
Pulsed MMA: Facilitates welding in the upward vertical position (pipes/pipeline...).

User assistance for the welder

2 ignition types: HF non-contact or LIFT for electrosensitive environments
3 trigger modes: - 2T: maintain pressure on the trigger throughout the weld.
- 4T: to start welding, hold the trigger once then press again to stop welding.
- 4T «LOG»: the operator can switch between 2 welding currents at any time with a brief trigger pulse (hot current and cold current)

MMA welding aids: - Antisticking: reduces the risk of electrode sticking upon contact with the workpiece
- Hot Start: facilitates arc ignition and is adjustable depending on the metal type
- Adjustable Arc Force: regulates arc length variations

VRD (voltage reduction device): welding current is only delivered when the electrode is in contact with the workpiece (not activated by default).

• Memorisation of up to 50 programs per process
• Connectivity for remote controls (foot pedal, manual remote control)
• Current/voltage display after welding (verification of WPS/WPQR compliance)
• Reinforced casing with anti-shock pads

Unit supplied with:
1 double-button torch SR26, length 4 m
1 earth clamp + cable, length 2 m
1 electrode holder
1 accessory kit

TIG AC/DC inverter welding machine (HF or LIFT), PULSED TIG (PULSE and EASY PULSE) and MMA.
Compatible with various types of materials such as steel, stainless steel, aluminum, titanium, copper, nickel, magnesium and their alloys.
Designed to guarantee excellent results on any thickness, even the finest, the PULSE mode (including the simplified EASY PULSE version) reduces material distortion by ensuring high arc stability.
Advanced functions: MIX AC-DC for preparing AC welding of large-mass workpieces; THINSPOT for spot welding of very thin sheet metal.
The CL screen facilitates interaction with the product and simplifies the adjustment of multiple TIG welding curve parameters depending on the job.
Ability to save and recall custom programs.
Electrode welding in both continuous and pulsed mode (MMA Pulse), guaranteeing excellent results with basic electrodes and in positional welding.
Designed to guarantee long-term reliability, it features a dedicated air tunnel cooling system that protects against dust and dirt.
Specifications:
TIG

• pulsed and EASY pulsed operation; in 2/4 stroke, Bi Level;
• 10 customizable welding programs;
• adjustment of multiple welding curve parameters: electrode pre-heating, initial/final current, spot welding time, pre/post gas, initial/final current ramp, DC/AC balance, square wave frequency;
• Advanced functions: THINSPOT for spot welding of very thin sheet metal; MIX AC-DC for heating the workpiece and preparing it for AC welding;
• start (HF/LIFT) at optimized minimum current;
• pre-equipped for remote control;
• compatibility with PRO torches;

MMA

• operation in continuous and pulsed current (MMA PULSE);
• hot start, arc force settings;
• anti-stick protection;
• VRD device;

Other specifications:

• CL screen for simplified interaction, immediate display and configuration of parameters;
• long-term reliability thanks to the dedicated air tunnel cooling system that protects against dust and dirt;
• ensures best performance even in the presence of undervoltages (up to -25%) and overvoltages (+15%);
• compact structure for easier transport and space saving;
• thermostatic, overvoltage, undervoltage, internal dirt, overcurrent, phase loss protections.

Supplied with TIG welding accessories.
1 TIG torch ST 26, length 4 m.
1 regulator with 2 pressure gauges for refillable cylinder.
1 ground clamp + 25 mm² cable, length 3 m
1 gas hose, length 2 m

This ESAB Renegade ET 210iP is a single-phase professional TIG welding machine with high-frequency ignition and MMA, with IP23 protection rating, capable of being used even in the most demanding environments.

Thanks to its light weight, the various lifting points provided on the outer body and the high-quality shoulder strap, the Renegade ET 210Ip Advanced can be transported easily.

Renegade ET 210iP is equipped with an integrated active PFC circuit that allows it to be used even on a low-power network or if an extension lead is used (length up to 100 m).

Easy to use. It provides direct access to parameter settings and features a
simple and intuitive user interface that allows you to read the parameters, even from a distance.

It allows MMA welding of rutile, basic, stainless steel, cast iron electrodes... and also cellulosic ones.

Technical specifications:

- High robustness with IP23 protection rating, for use in workshops and on job sites, in demanding environments

- Pulsed TIG up to 999 Hz to increase control of heat input and weld pool

- Integrated PFC circuit for a stable arc even with an extra-long power supply cable, up to 100 m

- Intuitive panel, quick to configure, for greater precision and reduced downtime

- Dual functionality - Current mode trigger to switch between two output current levels to control
heat input and weld pool size

- Modular system to connect the cooling unit (optional) and the trolley (optional)
without tools

Examples of application sectors
Shipbuilding and offshore
Civil construction
Pipe manufacturing
Repair and maintenance
Heavy fabrication
Industrial and general fabrication
Mining
Steel formwork

Supplied with:
1 earth clamp + 25 mm² cable length 3 m - 13 mm connector
1 strap for carrying the machine on the shoulder when working at height + anchor points for lifting.
1 TIG torch SR-B 26 length 4 m
1 gas hose length 4 m

Electrode holder optional

The Rogue ET 230iP AC/DC is a professional, portable, high-quality AC/DC TIG welding machine designed to excel in the daily welding of aluminum, stainless steel, and carbon steel.

The intuitive graphical interface with a 5-inch color screen offers new features for quick and easy adjustments. The machine can handle a wide range of thicknesses, including very thin sheet metal.

Selectable waveforms (square, soft square, sinusoidal, triangle) allow optimized heat input for high penetration on thicker materials and low distortion on thin sheets. Pulsed capabilities in DC TIG and AC TIG provide better control of the weld pool, allowing the welder to further customize the arc for multiple applications. TIG arc starts are designed to optimize performance based on the selected diameter and type of tungsten electrode.

The durable enclosure design combines strength and functionality with multiple lifting points for easy handling in the workshop and in the field.

Its key features:

- Different AC/DC waveforms (square - sinusoidal - triangle) for optimal energy transfer.
- Pulsed in AC TIG AND DC TIG up to 200 Hz for better control of heat input and the weld pool
- The integrated PFC circuit ensures a stable arc, even with extremely long power cables, up to 100 m
- New CoolMini 3 water cooling unit for lightweight TIG torches (not included in this version of the machine).
An intuitive and highly visible interface with a 5-inch color screen reduces downtime and improves precision.
- Dual current mode switches between two output current levels to control heat input and weld pool size.
- Easy access via the flashlight button to saved jobs
- Modular system with tool-free connection to the trolley.
- New Exeor TIG torch included.

Supplied with:
A ground cable 3 m in length
An air-cooled Exeor SR17 TIG torch 4 m in length
A gas hose 4 m in length

Sprinter 200 T
