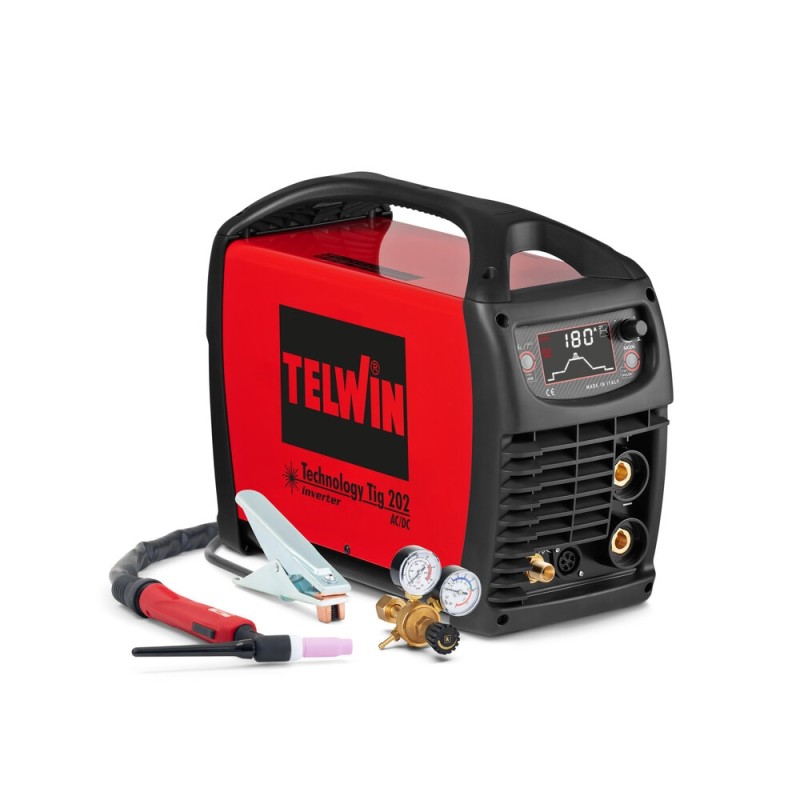

TELWIN - TIG AC/DC HF Technology 202 | Welding unit with accessories

This unit enables welding of steel, stainless steel and aluminum; ignition is either HF or LIFT type.
Its adjustment range is 5 to 350 A - Max current 350 A @35%
In MMA welding, it allows the use of electrodes from Ø 1.6 to 6 mm.

It also features the PULSE function, particularly suited for welding thin sheets where low heat input is required and adapted for welding in all positions.
When the pulse frequency increases, arc stability increases and therefore welding precision as well.
It also features the EASY PULSE system, allowing immediate pulsed welding even if the welder is not familiar with TIG welding, thanks to automatic parameter adjustment

THINSPOT function, enabling fast and precise spot welding.

It features the following functions:

TIG LIFT : Facilitates electrode striking.

TIG HF High-frequency CONTACTLESS ignition

TIG 2T/4T( manual or automatic welding)

TIG SPOT allows tack welding of parts before welding.

HOT START adjustable: additional starting power for electrodes that are difficult to strike.

SLOPE DOWN adjustable: this system eliminates arc extinction, thus preventing the formation of a crater at the end of the weld bead.

ARC FORCE: This process increases the amperage when the welding arc is kept short, which has the effect of increasing penetration and the mechanical strength of the weld bead.

ANTI STICKING: in the case of welding with coated electrodes, prevents electrode overload and thus preserves its characteristics,

TIG BI LEVEL: two different welding current parameters can be selected during the welding process, PRE-GAS/POST-GAS

( automatically adjusted by the microprocessor according to the current intensity and welding duration.

VRD : Improves safety during welding operations in wet environments

It also features the PULSE function, particularly suited for welding thin sheets where low heat input is required and adapted for welding in all positions.
When the pulse frequency increases, arc stability increases and therefore welding precision as well.
It also features the EASY PULSE system, allowing immediate pulsed welding even if the welder is not familiar with TIG welding, thanks to automatic parameter adjustment

THINSPOT, function enabling fast and precise spot welding.

Supplied with

1 water-cooled TIG torch ST 18A length 4 m.
1 dual-gauge regulator for refillable cylinder.
1 ground clamp + 25 mm² cable length 3 m
1 gas hose length 2 m
1 cart
1 cooling unit (coolant optional)

This unit enables welding with tungsten electrodes (TIG welding) on steel, stainless steel, copper, nickel...including aluminium.

It also allows welding with rutile or basic electrodes (MMA welding kit optional).

It comes with a 140A TIG torch with trigger, 4 m in length, plus a ground clamp.

It features the following functions:

TIG LIFT: Facilitates electrode striking.

TIG HF High-frequency arc starting WITHOUT CONTACT

TIG 2T/4T (manual or automatic welding)

TIG SPOT enables tack welding of parts prior to welding.

HOT START adjustable: additional starting power for electrodes that are difficult to strike.

SLOPE DOWN adjustable: this system eliminates arc extinction, thereby preventing crater formation at the end of the weld bead.

ARC FORCE: This process increases amperage when the welding arc is held short, which has the effect of increasing penetration and the mechanical strength of the weld bead.

ANTI STICKING: when welding with coated electrodes, prevents electrode overloading and thus preserves its characteristics.

TIG BI LEVEL: two different welding current parameters can be selected during the welding process, PRE-GAS/POST-GAS

( automatically adjusted by the microprocessor based on the current intensity and welding duration.

VRD: Improves safety during welding operations in damp environments

It also features the PULSE function, particularly suitable for welding thin sheet metal where low heat input to the workpiece is required, and adapted for welding in all positions.
As the pulse frequency increases, arc stability increases and therefore welding precision improves as well.
It also features the EASY PULSE system, allowing immediate welding in pulsed mode even if the welder is not accustomed to TIG welding, thanks to automatic parameter adjustment.

THINSPOT function, enabling fast and precise spot welding.

For connecting the unit to gas, it is recommended to use fitting 804208.

The PROTIG 201 AC/DC is the professional TIG welding solution for joining all types of materials up to 4 mm thick (steel, stainless steel, aluminium, copper or titanium).
It offers very high precision across many fields such as craftsmanship, maintenance or pipework.
Equipped with a water cooling unit, it allows the use of more ergonomic TIG torches.

6 TIG AC/DC welding processes

TIG DC: Ensures quality welding on all ferrous materials such as steel, stainless steel, but also copper and its alloys, titanium…
Pulsed TIG DC: Controls the temperature of the weld pool, limits distortion and thus allows the joining of thin sheets from 0.3 mm.
TIG DC Spot: Pre-assembles ferrous metal parts by tacking

TIG AC Easy: Simplifies the use of the welding unit through predefined parameters. The user only selects the diameter of their tungsten electrode on the interface
TIG AC Standard: Dedicated to welding aluminium and its alloys (Al, AlSi, AlMg, AlMn…). The alternating current ensures prior cleaning of the aluminium for a quality weld.
TIG AC Spot: Pre-assembles aluminium parts by tacking.

2 coated electrode welding modes

Standard MMA: Accepts basic and rutile electrodes up to Ø 4 mm
Pulsed MMA: Facilitates welding in the upward vertical position (pipes/pipeline...).

User assistance for the welder

2 ignition types: HF non-contact or LIFT for electrosensitive environments
3 trigger modes: - 2T: maintain pressure on the trigger throughout the weld.
- 4T: to start welding, hold the trigger once then press again to stop welding.
- 4T «LOG»: the operator can switch between 2 welding currents at any time with a brief trigger pulse (hot current and cold current)

MMA welding aids: - Antisticking: reduces the risk of electrode sticking upon contact with the workpiece
- Hot Start: facilitates arc ignition and is adjustable depending on the metal type
- Adjustable Arc Force: regulates arc length variations

VRD (voltage reduction device): welding current is only delivered when the electrode is in contact with the workpiece (not activated by default).

• Memorisation of up to 50 programs per process
• Connectivity for remote controls (foot pedal, manual remote control)
• Current/voltage display after welding (verification of WPS/WPQR compliance)
• Reinforced casing with anti-shock pads

Unit supplied with:
1 double-button torch SR26, length 4 m
1 earth clamp + cable, length 2 m
1 electrode holder
1 accessory kit

The Minarc TIG 200 EVO features high-frequency arc ignition, ensuring reliable performance across a wide variety of welding tasks.
Ideal for light construction, installation, repair and maintenance applications.

This unit features an LED display.
Precise arc ignition from 5A.
Duty cycle: 200 A @ 35%.
Pre-gas and post-gas adjustment
Compatible with generator use.

It is supplied with:
1 type 26 torch reference Kemppi TX 225, 8 m long - leather sleeve finish. Supplied with a GR6 gas nozzle, an electrode holder + gas diffuser and a grey cerium tungsten electrode Ø 2.4 mm
1 ground clamp + 25 mm² cable, 5 m long

Ultra-compact, the PROTIG 160 DC (160 A) with Lift arc start ensures high-quality welds on mild and stainless steels. Its intuitive interface allows you to adjust parameters with ease.

OPTIMISED DC WELDING
DC TIG: ensures quality welding on all ferrous materials such as steel, stainless steel and also copper and its alloys.
Lift contact arc start for electrosensitive environments.
Excellent weld finish thanks to downslope (user-adjustable) and post-gas (managed automatically).
Automatic torch detection: compatible with lamella and double-button torches.

MMA WELDING
MMA welding current from 20 to 160 A.
Compatible with basic, rutile, stainless steel and cast iron electrodes (up to Ø 4 mm).
3 integrated welding aids:
- Antisticking: reduces the risk of electrode sticking when in contact with the workpiece
- Hot Start (adjustable): facilitates arc starting and is set in seconds according to the type of metal
- Arc Force: momentary increase in current in difficult welding situations

SAFETY FEATURES
Optimised machine cooling with thermal protection.
Protected against overloads and overvoltages up to 400 V. Compatible with a generator.

Supplied with
1 TIG torch SR17 DB length 4 m
1 earth clamp + cable cross-section 16 mm² length 2 m
1 electrode holder + cable cross-section 16 mm² length 2 m

Ultra-compact and designed for craftsmen, the PROTIG 161 DC HF (160 A) delivers high-quality welds on mild and stainless steels thanks to its advanced secondary regulation. Its intuitive interface makes parameter adjustment straightforward.

OPTIMISED DC WELDING
Secondary regulation: ensures optimal arc stability and constant current in all positions.
TG DC: ensures quality welding on all ferrous materials such as steel, stainless steel, but also copper and its alloys…
TIG DC Pulsed: controls the temperature of the weld pool, limits distortion and thus allows the joining of thin sheets from 0.3 mm.
SPOT: fast and precise tacking before welding thin sheets.
2 ignition types: HF non-contact or LIFT contact for electrosensitive environments.
3 trigger modes: 2T, 4T and 4T LOG.
Automatic torch detection: compatible with blade and double-button torches

MMA WELDING
MMA: Basic and Rutile electrodes (up to Ø 4 mm)
Pulsed MMA: facilitates upward vertical position welding (pipes/pipeline…)
3 integrated welding aids:
- Antisticking: reduces the risk of electrode sticking upon contact with the workpiece
- Hot Start: facilitates arc ignition and is adjustable in seconds depending on the metal type
- Arc Force: temporary current increase in difficult welding situations.

INTUITIVE
Current and voltage display during and after welding (WPS/WPQR).
Memorisation of 10 programs per process for perfect reproducibility of your welds.
Intelligent fan management to reduce power consumption, dust intake and machine noise.

→ Supplied with:
1 TIG torch SR17 DB - 4 m, + accessories *
1 electrode holder and earth clamp with 25 mm² section cable, length 2 m.

* 1 electrode holder Ø 1.6 and 2.4 mm
1 diffuser for electrode Ø 1.6 and 2.4 mm
1 ceramic nozzle GR7 and GR5
1 long cap and 1 short cap

Rogue ET180i is a TIG welding machine with HF ignition in direct current (DC) and MMA, built with the latest inverter technologies to guarantee an extremely stable welding arc, ideal for working on iron, stainless steel, brass, cast iron...

The electronic boards of the Rogue ET 201i PRO are protected by a special coating that insulates them from moisture and dust (IP23S protection). The body is very robust and the dimensions are compact, allowing the operator to transport and use this welding machine in the workshop or on site even in adverse environmental conditions.

The Rogue ET201i PRO can generate a maximum welding current of 200A and has a duty cycle of 129 A at 60%; these characteristics make this welding machine ideal for installation, maintenance and light joinery work.

The control panel of the Rogue ET201i PRO is easy to use and the convenient LCD screen allows the operator to accurately view the welding parameters. From the control panel, it is possible to modify the TIG welding parameters to adapt the process to the operator's needs: LIFT or HF trigger mode, pre and post gas, initial and final current, up and down slope, 2T or 4T.

If you use the Rogue ET201i PRO in MMA mode for MMA welding (electrode holder optional), it is possible to select the Arc-Force percentage and hot start that best suits the welder's operating style; furthermore, from the control panel, it is possible to select the welding mode for electrodes with CELLULOSE coating.

The Rogue ET 201i comes with:

- Instruction manual
- Shoulder strap for transport
- ESAB SR26 TIG torch 4 metres with a grey Cerium tungsten electrode Ø 2.4 mm)
- Ground cable 16mm2 cross-section - length 3 m
- Gas hose with quick connector

This machine replaces the ESAB ROGUE ET200i PRO model and additionally features the PULSE function compared to the previous model.

The Pulse function of the Rogue allows welders to better control heat input and arc stability. The controlled action of the pulse helps create a stable arc, avoiding excessive spatter and minimising the risk of weld defects or the need for post-weld cleaning. The Rogue's Pulse technology facilitates penetration and fusion in the welding process, which is essential for creating strong and durable weld beads and for ensuring the structural integrity of fabricated components. Pulse technology helps minimise the heat-affected zone, thereby reducing the likelihood of material distortion or unforeseen metallurgical changes.

The PROTIG 201 AC/DC represents the professional TIG welding solution for joining all types of materials up to 4 mm thick (steel, stainless steel, aluminium, copper or titanium).
It offers very high precision in many fields such as craftsmanship, maintenance or pipework.
Equipped with a water cooling unit, it allows the use of more ergonomic TIG torches

6 TIG AC/DC welding processes

TIG DC: Ensures quality welding on all ferrous materials such as steel, stainless steel, as well as copper and its alloys, titanium…
Pulsed TIG DC: Controls the temperature of the weld pool, limits deformation and thus allows the joining of thin sheets from 0.3 mm.
TIG DC Spot: Pre-assembles ferrous metal parts by tack welding

TIG AC Easy: Simplifies the use of the welding unit thanks to predefined parameters. The user only selects the diameter of their tungsten electrode on the interface
TIG Standard: Dedicated to welding aluminium and its alloys (Al, AlSi, AlMg, AlMn…). Alternating current ensures preliminary cleaning of the aluminium for a quality weld.
TIG AC Spot: Pre-assembles aluminium parts by tack welding.

2 stick electrode welding modes

MMA Standard: Accepts basic, rutile electrodes up to Ø 4 mm
Pulsed MMA: Facilitates vertical up-position welding (pipe fittings/pipeline...).

User assistance for the welder

2 arc ignition types: HF non-contact or LIFT for electrosensitive environments
3 trigger modes: - 2T: maintain pressure on the trigger throughout the weld.
- 4T: to start welding, hold the trigger once then press again to stop welding.
- 4T "LOG": the operator can switch between 2 welding currents at any time with a brief pulse on the trigger (hot current and cold current)

MMA welding assistance: - Anti-sticking: reduces the risk of electrode sticking when in contact with the workpiece
- Hot Start: facilitates arc striking and can be adjusted according to the type of metal
- Adjustable Arc Force: regulates arc length variations

VRD (voltage reduction device): welding current is delivered only when the electrode is in contact with the workpiece (not activated by default).

• Memory for up to 50 programs per process
• Connectivity for remote controls (foot pedal, manual remote control)
• Current/voltage display after welding (verification of compliance with WPS/WPQR)
• Reinforced casing and anti-shock pads

Unit delivered without accessories

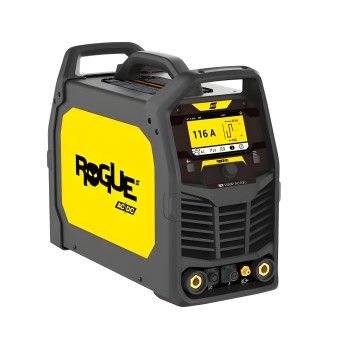

The Rogue ET 230iP AC/DC is a professional, portable, high-quality AC/DC TIG welding machine designed to excel in the daily welding of aluminium, stainless steel and carbon steel.

The intuitive graphical interface with a 5-inch color screen offers new features for quick and easy adjustments. The machine can handle a wide range of material thicknesses, including very thin sheets.

The selectable waveforms (square, soft square, sinusoidal, triangle) allow optimized heat input for high penetration on thicker materials and low distortion on thin sheets. The pulsed DC TIG and AC TIG capabilities provide better control of the weld pool, allowing the welder to further customize the arc for multiple applications. TIG arc starts are designed to optimize performance based on the selected tungsten electrode diameter and type.

The durable enclosure design combines strength and functionality with multiple lifting points for easy handling in the workshop and on-site.

Its key features:

- Different AC/DC waveforms (square - sinusoidal - triangle) for optimal energy transfer.
- Pulsed in AC TIG AND DC TIG up to 200 Hz for better control of heat input and the weld pool
- The integrated PFC circuit allows a stable arc, even with extremely long power cables, up to 100 m
- New CoolMini 3 water cooling unit for lightweight TIG torches
An intuitive and highly visible interface with a 5-inch color screen reduces downtime and improves precision.
- The dual current mode switches between two output current levels to control heat input and weld pool size.
- Easy access via the flashlight button to saved jobs
- Modular system with tool-free connection to the trolley.
- New Exeor TIG torch included.

Delivered with:
A ground cable 3 m long
An Exeor SR21 TIG torch 4 m long
A gas hose 4 m long
A CoolMini 3 cooling unit

The Rogue ET 230iP AC/DC is a professional, portable, high-quality AC/DC TIG welding machine designed to excel in the daily welding of aluminum, stainless steel, and carbon steel.

The intuitive graphical interface with a 5-inch color screen offers new features for quick and easy adjustments. The machine can handle a wide range of thicknesses, including very thin sheet metal.

Selectable waveforms (square, soft square, sinusoidal, triangle) allow optimized heat input for high penetration on thicker materials and low distortion on thin sheets. Pulsed capabilities in DC TIG and AC TIG provide better control of the weld pool, allowing the welder to further customize the arc for multiple applications. TIG arc starts are designed to optimize performance based on the selected diameter and type of tungsten electrode.

The durable enclosure design combines strength and functionality with multiple lifting points for easy handling in the workshop and in the field.

Its key features:

- Different AC/DC waveforms (square - sinusoidal - triangle) for optimal energy transfer.
- Pulsed in AC TIG AND DC TIG up to 200 Hz for better control of heat input and the weld pool
- The integrated PFC circuit ensures a stable arc, even with extremely long power cables, up to 100 m
- New CoolMini 3 water cooling unit for lightweight TIG torches (not included in this version of the machine).
An intuitive and highly visible interface with a 5-inch color screen reduces downtime and improves precision.
- Dual current mode switches between two output current levels to control heat input and weld pool size.
- Easy access via the flashlight button to saved jobs
- Modular system with tool-free connection to the trolley.
- New Exeor TIG torch included.

Supplied with:
A ground cable 3 m in length
An air-cooled Exeor SR17 TIG torch 4 m in length
A gas hose 4 m in length

This machine allows welding with tungsten electrodes (TIG welding) steel, stainless steel, copper, nickel ...including aluminium .

It also allows welding with rutile or basic electrodes (MMA welding kit optional).

It features the following functions:

TIG LIFT: Facilitates electrode striking.

TIG HF High frequency CONTACTLESS ignition

TIG 2T/4T (manual or automatic welding)

TIG SPOT allows tacking of parts before welding.

HOT START adjustable: additional starting power for electrodes that are difficult to strike.

SLOPE DOWN adjustable: this system eliminates arc fade, thus preventing the formation of a crater at the end of the weld bead.

ARC FORCE: This process increases the amperage when the welding arc is kept short, which has the effect of increasing penetration and the mechanical strength of the weld bead.

ANTI STICKING: in the case of welding with coated electrodes, prevents electrode overloading and thus preserves its characteristics,

TIG BI LEVEL: two different welding current parameters can be selected during the welding process, PRE-GAS/POST-GAS

( automatically adjusted by the microprocessor according to the current intensity and the welding duration.

VRD: Improves safety during welding operations in damp environments

It also features the PULSE function particularly suited for welding thin plates where low heat input to the workpiece is required and adapted for welding in all positions.
As the pulse frequency increases, arc stability increases and therefore welding precision improves as well.
It also features the EASY PULSE system allowing immediate pulsed mode welding even if the welder is not familiar with TIG welding, thanks to automatic parameter adjustment

THINSPOT function, enabling fast and precise spot welding.

For gas connection of the machine, it is recommended to use fitting 804208.

The TITANIUM 230 AC/DC FV is a single-phase TIG AC/DC welding generator. Smart and connected, it offers extremely precise arc control and industrial welding performance up to 230 A (16 A fuse) thanks to its integrated power factor corrector. It combines excellent ergonomics and an exceptional user experience with advanced welding functions

6 TIG WELDING MODES
DC Standard: welding with smooth current on most ferrous materials.
DC Pulsed: allows parts to be assembled while limiting heat input (pulses up to 2.5 kHz).
FastPulse: pulses up to 20 kHz on special steels.
AC Standard: welding of aluminium and its alloys (Al, AlSi, AlMg, AlMn, etc.).
AC Pulsed: precise penetration control based on AC frequency setting (pulses up to 500 Hz).
AC Mix: alternating AC and DC current to increase welding speed

TIG WIZARD SOLUTION
Patented synergic mode for maximum productivity with tacking and welding of Aluminium, Steel, Stainless Steel and Copper parts with or without filler metal.
5 joint types: Butt (BW), Fillet (FW), Inside corner (BP), Outside corner and wire splicing.
Wizard Lab for performing complex welding cycles

OPTIMIZED SETTINGS
4 tacking modes:
- Spot / Multi Spot: traditional tacking prior to welding thin sheet metal.
- Tack / Multi Tack: ultra-precise, oxidation-free tacking reducing the risk of distortion.
3 arc ignition types: Lift, HF and Touch.HF (timed high-frequency ignition).
3 trigger modes: 2T, 4T and 4T LOG
AC waveform shaping settings for improved arc control and penetration.
E-TIG mode ensures the welder maintains the correct welding power regardless of the torch position relative to the workpiece (welding energy control).

MAXIMUM CONNECTIVITY
Precisely measured energy input.
Traceability of all weld beads in accordance with EN 3834 standard.
Welding accessory calibration mode (refines energy calculation).
Connectable via an optional kit (037960) for use on a robot.
User mode to share the product with multiple welders.
Free online tool available for interface customization.
Save, from a USB key, user JOBs (500 max.) as well as machine configuration.
Compatible with lamellar, double-button, potentiometer and Up & Down torches.
Complete machine and synergy update via USB key.
Remote controls (foot pedal or manual, optional) connectable without tools.
MMA, MMA AC and Pulsed MMA modes (electrodes weldable up to Ø 8 mm).
VRD (Voltage Reduction Device) activatable to lower the no-load output voltage to < 35 V.
"FV" technology guarantees a consistently stable electric arc even in the event of mains voltage variations (85 to 265 V), generator power supply or use of very long power cables.

The PROTIG 201L AC/DC is the professional TIG welding solution for joining all types of materials up to 4 mm thick (steel, stainless steel, aluminium, copper or titanium).
It offers very high precision across many fields such as craftsmanship, maintenance and pipework.
Equipped with a water cooling unit, it allows the use of more ergonomic TIG torches

6 TIG AC/DC welding processes

TIG DC: Ensures quality welding on all ferrous materials such as steel, stainless steel, as well as copper and its alloys, titanium…
Pulsed TIG DC: Controls the temperature of the weld pool, limits distortion and thus enables the joining of thin sheet metal from 0.3 mm.
TIG DC Spot: Pre-assembles ferrous metal parts by tack welding

TIG AC Easy: Simplifies use of the welding machine thanks to predefined parameters. The user only selects the diameter of their tungsten electrode on the interface
TIG Standard: Dedicated to welding aluminium and its alloys (Al, AlSi, AlMg, AlMn…). Alternating current ensures preliminary cleaning of aluminium for a quality weld.
TIG AC Spot: Pre-assembles aluminium parts by tack welding.

2 coated electrode welding modes

MMA Standard: Accepts basic and rutile electrodes up to Ø 4 mm
Pulsed MMA: Facilitates vertical upward position welding (tubes/pipeline...).

Usage assistance for the welder

2 ignition types: HF contactless or LIFT for electrosensitive environments
3 trigger management modes: - 2-stroke: hold the trigger throughout the weld.
- 4-stroke: to start welding, hold the trigger once then press it again to stop welding.
- 4T "LOG": the operator can switch at any time between 2 welding currents with a brief trigger pulse (hot current and cold current)

MMA welding assistance: - Antisticking: reduces the risk of electrode sticking when in contact with the workpiece
- Hot Start: facilitates arc ignition and is adjustable according to metal type
- Adjustable Arc Force: regulates arc length variations

VRD (voltage reduction device): welding current is delivered only when the electrode is in contact with the workpiece (not activated by default).

• Memorization of up to 50 programs per process

• Current/voltage display after welding (verification of compliance with WPS/WPQR)
and Connectivity for remote controls (foot pedal, manual remote control)

Machine delivered with:
1 SR20 DB torch length 4 m
1 earth clamp + cable length 2 m
1 electrode holder + cable length 2 m

This machine allows welding with tungsten electrodes (TIG welding) on steel, stainless steel, cast iron, copper, nickel, and titanium.

It also allows welding with rutile or basic electrodes (MMA welding kit optional).

It comes with a 140A trigger TIG torch 4 m in length + ground clamp.

It features the following functions:

TIG LIFT: Facilitates electrode striking.

TIG HF High-frequency NO-CONTACT arc starting

TIG 2T/4T (manual or automatic welding)

TIG SPOT allows tack welding of parts before welding.

HOT START adjustable: additional starting power when an electrode is difficult to strike.

SLOPE DOWN adjustable: this system eliminates arc fade, thus preventing the formation of a crater at the end of the weld bead.

ARC FORCE: This process increases the amperage when the welding arc is kept short, which has the effect of increasing penetration and the mechanical strength of the weld bead.

ANTI STICKING: in the case of welding with coated electrodes, prevents electrode overload and thus preserves its characteristics,

TIG BI LEVEL: two different welding current parameters can be selected during the welding process, PRE-GAS/POST-GAS

(automatically adjusted by the microprocessor according to the current intensity and welding duration.

It also features the PULSE function, particularly suited for welding thin sheets where low heat input to the welded workpiece is required and adapted for welding in all positions.
As the pulse frequency increases, arc stability increases and therefore welding precision also improves.

THINSPOT function, enabling fast and precise spot welding.

For connecting the machine to gas, it is recommended to use fitting 804208.

The PROTIG 231L DC PFC is a pulsed DC TIG welding generator with an integrated water cooling unit. Its PFC technology allows it to operate from 195 V to 265 V and achieve a very stable arc even on 100 m site extension leads. In stick electrode welding, its Pulsed MMA mode facilitates upward welding.

2 welding processes possible with this unit:

-TIG DC
DC Standard: welding with smooth current on the majority of ferrous materials.
Pulsed DC up to 2 kHz: controls the temperature of the weld pool, limits distortion and allows the joining of thin sheet metal from 0.3 mm.

2 tacking modes:
- Spot: adjustable tacking from 0.1 to 60 seconds for parts prior to welding.
- Pulse: adjustable tacking from 0.01 to 60 seconds on thin sheet metal prior to welding.
2 arc ignition types:
- HF non-contact
- LIFT by contact for electrically sensitive environments. 3 trigger modes: 2T, 4T and 4T LOG.

Advanced secondary regulation for optimal arc stability and constant current in all positions.
Memory storage of up to 50 programs per process for repetitive tasks. Advanced menu for optimal welding control.
Current and voltage display during and after welding (WPS/PQR)
Automatic torch detection: compatible with blade-type, dual-button, potentiometer and Up&Down torches.
Remote controls (foot pedal or manual, optional) connectable without tools.
VRD activatable via an internal switch to lower the open-circuit output voltage to < 35 V.
Intelligent fan management to reduce power consumption, dust intake and unit noise.

MMA
MMA Standard: rutile and basic electrodes (up to Ø 5 mm).
Pulsed MMA up to 500 Hz: facilitates vertical upward welding (pipe joints / pipeline…)

Product highlights
Accepts extension leads up to 100 m.
Reinforced casing and anti-shock feet.
Compact and easily portable on site.
Protected against overvoltages up to 400 V (PROTEC 400).

Unit delivered with:
1 SR20 DB torch 4 m long
1 earth clamp + cable section 25 mm² length 2 m
1 electrode holder + cable section 25 mm² length 2 m

The PROTIG 231L DC PFC is a pulsed DC TIG welding generator with an integrated cooling unit. Its PFC technology allows it to operate from 195 V to 265 V and achieve a very stable arc even on 100 m site extension cords. In stick electrode welding, its Pulsed MMA mode facilitates vertical-up welding.

2 welding processes available with this unit:

-TIG DC
Standard DC: welding with smooth current on the majority of ferrous materials.
Pulsed DC up to 2 kHz: controls the temperature of the weld pool, limits distortion and enables the joining of thin sheets from 0.3 mm.

2 tacking modes:
- Spot: adjustable tacking from 0.1 to 60 seconds for parts before welding.
- Pulse: adjustable tacking from 0.01 to 60 seconds on thin sheet metal before welding.
2 arc starting types:
- HF non-contact
- LIFT contact start for electrosensitive environments. 3 trigger modes: 2T, 4T and 4T LOG.

Advanced secondary regulation for optimal arc stability and constant current in all positions.
Memory storage of up to 50 programs per process for repetitive tasks. Advanced menu for optimal welding control.
Current and voltage display during and after welding (DMOS/QMOS)
Automatic torch detection: compatible with blade-type, dual-button, potentiometer and Up&Down torches.
Remote controls (foot pedal or manual, optional) connectable without tools.
VRD activatable via an internal switch to lower the open-circuit output voltage to < 35 V.
Intelligent fan management to reduce power consumption, dust intake and machine noise.

MMA
Standard MMA: rutile and basic electrodes (up to Ø 5 mm).
Pulsed MMA up to 500 Hz: facilitates vertical-up position welding (pipe fittings/pipeline…)

Product highlights
Accepts extension cords up to 100 m.
Reinforced casing with anti-shock feet.
Compact and easy to move on site.
Protected against voltage surges up to 400 V (PROTEC 400).
