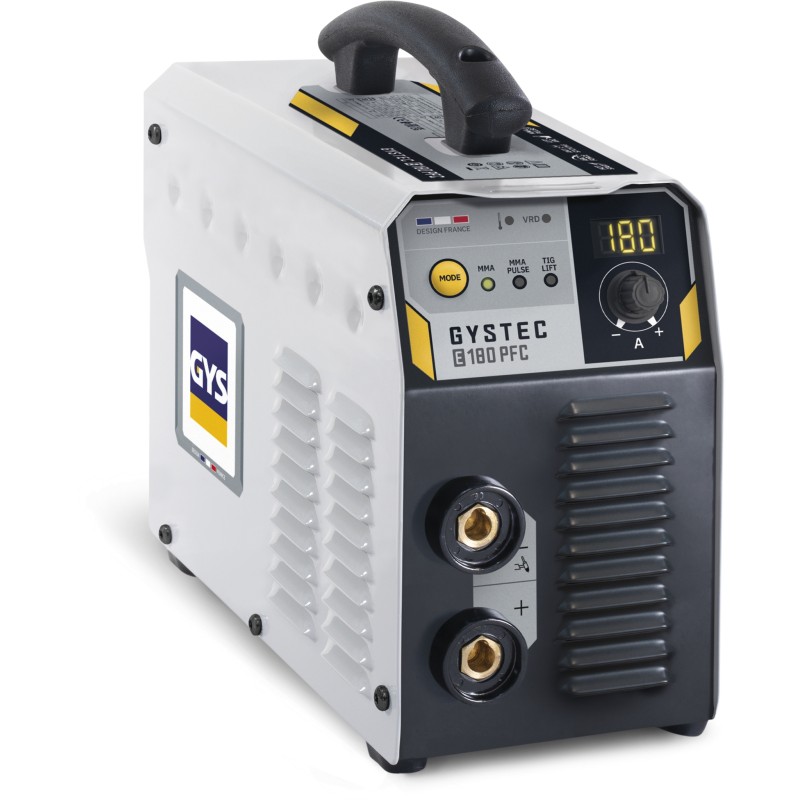

GYSTEC E180 PFC MMA Welding Machine with case
  • GYSTEC E180 PFC MMA Welding Machine with case
  • GYSTEC E180 PFC MMA Welding Machine with case
  • GYSTEC E180 PFC MMA Welding Machine with case

Duty cycle: 110A at 60% and 85A at 100%
MMA, MMA Pulse and TIG Lift process
Current range: 10 to 180A
Welds steel, cast iron and stainless steel up to 10mm thick
Compatible with rutile, stainless steel, cast iron and basic coated electrodes
Electrode diameter: 1.6 to 4 mm
Technologies: Hot Start, Arc Force, Antisticking, Pulse, P400, PFC and ADS
Power supply: 230 Volts 50/60 Hz - 16A -
Open circuit voltage: 64 V
Weight: 5.9kg - 2-year warranty

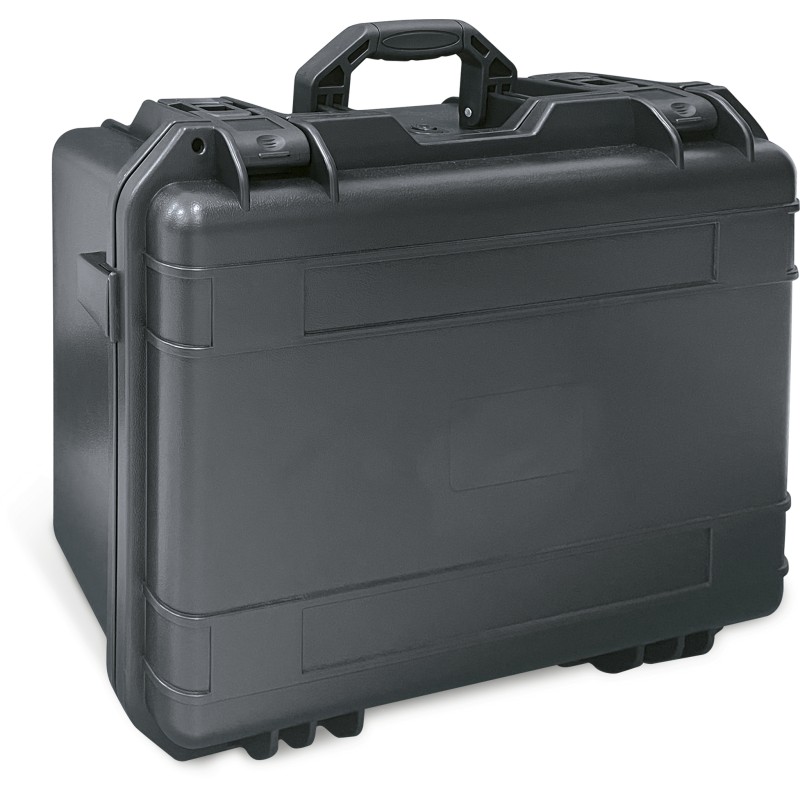

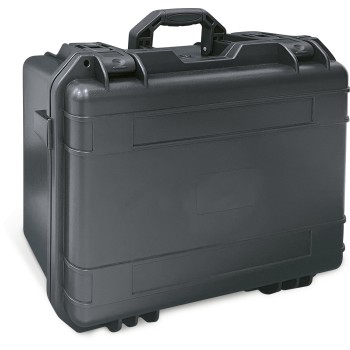

Delivered in a case with:
1x Cable with earth clamp (3 metres) 16mm2 (10/25 mm2 connector)
1x Cable with electrode holder (3 metres) 16mm2 (10/25 mm2 connector)

Optional: Valve TIG torch - 4m (044425)

Reference: 083608

GYS - GYSTEC E180 PFC welding machine with case

Gys
By purchasing this product you will earn 7.42 € thanks to our loyalty program. Your cart will total 7.42 €.
favorite_border favorite
€448.70

370,83 € tax excl.

In stock
Shipping within 24h
Delivery in 24-48h
A question about this product? Characteristics Description The technical data sheet The manual

Duty cycle: 110A at 60% and 85A at 100%
MMA, MMA Pulse and TIG Lift process
Current range: 10 to 180A
Welds steel, cast iron and stainless steel up to 10mm thick
Compatible with rutile, stainless steel, cast iron and basic coated electrodes
Electrode diameter: 1.6 to 4 mm
Technologies: Hot Start, Arc Force, Antisticking, Pulse, P400, PFC and ADS
Power supply: 230 Volts 50/60 Hz - 16A -
Open circuit voltage: 64 V
Weight: 5.9kg - 2-year warranty

Delivered in a case with:
1x Cable with earth clamp (3 metres) 16mm2 (10/25 mm2 connector)
1x Cable with electrode holder (3 metres) 16mm2 (10/25 mm2 connector)

Optional: Valve TIG torch - 4m (044425)

-20%

Buy a welding machine and get 20% off all consumables on the site

By purchasing this product you will earn 7.42 € thanks to our loyalty program. Your cart will total 7.42 €.
Last items in stock

100% secure payment in 2, 3, 4 or 10 instalments by credit card or PayPal
Secure payment methods
Expert after-sales service
Authorised Euro Welding dealer
A question about this product?

Description

At the top of the GYSTEC range, the E180 PFC generator is a highly versatile 180 A single-phase inverter welding machine, integrating the latest electronic technologies and digital control via digital display. It supports 3 welding processes: MMA, MMA Pulse and TIG Lift, enabling precise, high-quality welds on steel, stainless steel and cast iron, up to 10 mm thick.

Thanks to its PFC (Power Factor Correction) technology, this machine guarantees perfect arc stability, even in the event of mains voltage fluctuations or when using site extension cables up to 100 metres. It is also compatible with generators, ideal for professional use on site.

Compatible electrodes: rutile, basic, stainless steel, cast iron (Ø 1.6 to 4.0 mm).
Digital display: precise control of parameters.
PROTEC 400 protection: withstands voltage surges up to 400 V.
Activatable VRD technology: open circuit voltage < 35 V for user safety.
Downslope function: progressive weld end.
Compact dimensions: 35 x 15 x 27 cm – 5.9 kg.

3 welding modes:

MMA: compatible with all electrodes, ideal for a variety of tasks.
MMA Pulse: perfect for vertical upward welding (pipework, pipelines…), with adjustable frequency and cold current settings.
TIG Lift: for fine welds on sheet metal, without tungsten inclusion.


Integrated welding aids:
Adjustable Hot Start: facilitated arc striking.
Adjustable Arc Force: temporary boost in case of difficulties.
Antisticking: prevents electrode sticking.
Adjustable Downslope: controlled weld end by movement.

ADS function: automatic arc fade-out (ADS)
This innovative function allows a weld bead to be finished without craters thanks to arc fade-out. The duration is adjustable and the fade-out is triggered at the end of the weld by a simple movement of the torch.

In addition, it is ideal for outdoor job sites:

Can be used with extension cables up to 100 m.
Compatible with generators.
Ventilation tunnel to limit dust intake.
Compact and portable format with storage case.

Characteristics of GYS - GYSTEC E180 PFC welding machine with case

Supply voltage (in Volts) 230 / 400 3 Ph - Volt 50-60 Hz Fuse (in Amperes) 16 A
MMA power range (in Amperes) 15- 180 A TIG welding adjustment range (in Amperes) 15 180 A
Duty cycle at 40°C MMA 120A @60% - 180A @20% Open circuit voltage (in Volts) 73 V
Possible electrode type Rutile - stainless steel/cast iron - basic Usable rutile electrode diameter (Ø) for the unit (in mm) 1.6 to 4 mm
Ventilated Yes Generator compatible Yes
Welding process MMA / TIG LIFT Warranty 2 years
Dimensions (in mm) 480 X 230 X 400 Weight in kg 11.4
Protection rating IP21 Suggested generator power 10 kVA
Usage Professional
Semi-professional		 TIG ignition type TIG Lift
Pulse function yes Delivered in a carry case Yes
PFC yes Max MMA Power 200 A Max
