ESAB - SAVAGE A50 LUX

The GYSMATIC 5/13 AIR TRUE COLOR XXL is a welding mask equipped with a powered air-purifying respirator system. 2 in 1, it protects the eyes from IR/UV during welding operations and preserves the operator's respiratory tract.

• The XXL screen provides an optimal field of vision.
• True Color technology guaranteeing incredible color accuracy during welding.
• The 9 available shades (5> 13) adapt to all welding operations. It offers the possibility of TIG welding from 2 A.
• The 4 solar sensors guarantee very high sensitivity and an ultra-fast reaction time (0.08 ms).
• 3 adjustable airflow rates according to need (from 170 l/min to 230 l/min).
• The lithium battery allows up to 8 hours of autonomy.
• The filter rated TH2PRSL retains 99.996% of welding particles.
• Standards EN 166 / EN 175 / EN 379 / EN 12941.
• Supplied with powered air-purifying respirator system, lithium battery, EU charger, harness, flow meter and carry bag.

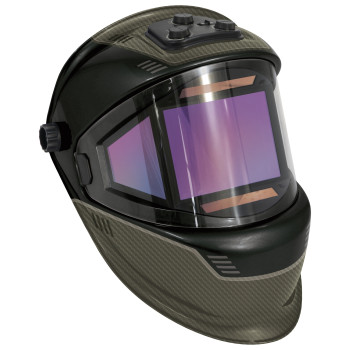

Essential for safety, the PANORAMIC 3 XL optoelectronic welding helmet protects the welder's face and eyes from UV, infrared, and spatter. Fully automatic, the mask switches from clear to shaded state in a fraction of a second, from the moment the arc is struck. Delivered with a headband, it frees the welder's hands and provides all the comfort needed for welding work.

UV/IR protection level: DIN 15
Shade: adjustable from 4 to 12 - True Color Technology
Classification: 1/1/1/1
Viewing area: 131 x 84 mm + 2x (67 x 75 mm) – Panoramic vision
Reaction time: 0.15 ms
Adjustments: sensitivity, shade, delay, memory
Power supply: solar + 2 CR 2450 batteries
Weight: 610 g
Standards: EN 175 / EN 379

Applications
MMA: 5 to 400 A
TIG: 2 to 250 A
MIG/MAG: 5 to 400 A
Grinding mode (Grind)

Consumables:
Outer lens 385 x 150 mm (ref. 037311)
Panoramic inner lens (ref. 037304)

 3 References available for the EuropurePlus welding helmet:

WP403676-18 Pre-Filter (pack of 5 pieces)
WP403676-19 Spark arrestor (1 piece)
WP403676-17 P3 Particulate Filter

Welding helmet suitable for arc welding:

MMA (stick electrode) from 5 to 400 A
MIG-MAG (semi-automatic welding) from 5 to 400 A
TIG from 5 to 300 A

Adjustable shade: DIN 5 to 13; setting 5 to 8 for flame welding and 9 to 13 for arc welding.
Solar powered + 2 CR2450 batteries
Automatically switches from light shade to dark shade upon arc strike in 0.2 ms
Weight: 560 grams.

Viewing field 100 x 67 mm
Number of sensors: 4
Adjustable headband
Grinding position (Grind): the lens remains clear during grinding and cutting work.

Optical classification: 1/1/1/2
Compliant with standards EN 175 / EN 379

Powered air purifying respirator mask with TH3 P R SL filtration system

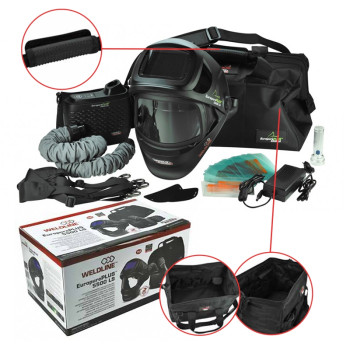

The EuropurePLUS™ 5500 LS is an intelligent powered air purifying respirator system with filtration. It features an integrated flip-up lens for grinding, side windows, an extra-large auto-darkening lens and our Light Shade (LS) Technology.

Adjustable airflow from 170 to 210 litres/minute
Battery life: 5 to 9 hours depending on airflow setting
Battery charge time: 1 hour
Particle and aerosol filtration: P3 - Protects against particles related to dust and welding fumes
Visual, audible and vibrating alarms for additional safety
PAPR certification EN 12941 TH3 P RSL

this helmet requires 2 cr2450 batteries for the cell to function.

In addition to the Europure Plus 5500LS powered air purifying respirator mask, the following are included:
5 outer protective screens and 2 inner protective screens
1 side window cover kit
2 Pre-filters and 2 Filters – 2 pieces
1 Lithium battery
2 Spark guards
1 Battery charger
1 Hose with protection
1 Head cover
1 Shoulder straps
1 Airflow indicator
1 Carrying bag
1 Bandana
1 Sticker sheet

2 CR2450 batteries

Warranty period: fan: 1 year
Auto-darkening cell: 2 years

This Optrel Helix Quattro welding helmet with flip-up lens is suitable for welding in demanding conditions
Amperage adjustment range: up to 500 A.
The switching time of this helmet is 0.090ms at 20°C and 0.070ms at 55°C
The EN 379 classification of this model is: 1/1/1/1
Protection level (adjustable shade): 4-14
Clear shade: 3 for grinding work.
Weight 640 g
Temperature resistance: Welding helmet 220° and protective screen up to 137°
Suitable for MMA, MIG/MAG and TIG welding as well as plasma cutting. This helmet also features a grinding mode.
Suitable for overhead welding in constrained positions.

Delivered with:
a standard Isofit headband, adjustable in height, width and length to fit any head shape.
Storage bag
Micro USB charging cable
Protective screen
Warranty card.

2-year warranty with 1 additional year (excluding the battery) if the product is registered within the first 6 months after purchase on www.optrel.com.

Automatic wide-screen welding helmet Black colour XL field of view: 100x50mm Construction: PP True Colour Technology Fixed light shade: DIN3 Variable dark shade: DIN 4/5 - 9/9-13 Solar power + 2 replaceable CR2450 batteries Low battery alarm and test button Number of sensors: 4 Automatically switches from light to dark shade on arc strike: less than 1/30,000 seconds Return to light state from 0.1S to 1S UV protection: DIN16 Optical class 1/1/1/1 Grinding mode Weight 550 grams

Application fields: MMA 5 to 400 / TIG 2 to 300 / MIG-MAG 5 to 400 Standards: CE / EN 175B / EN 166 / EN 379

This auto-darkening welding helmet features 4 sensors with an integrated grinding screen with anti-fog coating
Operates with 2 CR 2450 lithium batteries. Equipped with a diode indicating the battery level.
Vision area: 75 x 108 mm.
Light/dark switching time: 0.000004 ms
Dark/light switching time: 10 positions from 0.1 to 1 second.
Sensitivity adjustment via digital button: 10 positions.
Adjustable shade from 9 to 13 for welding, from 5 to 8 for cutting.
Suitable for low-amperage TIG welding, microplasma, and oxy-acetylene welding

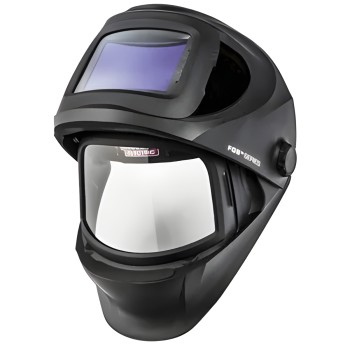

 Lincoln Electric's exclusive 4C technology liquid crystal display (LCD) increases the spectrum of visible colors. Unlike the traditional auto-darkening filter, 4C® technology broadens the range of visible colors and shades whether the light is diffuse or dark. It eliminates imperfections and color saturation, allowing you to clearly see the material being welded, the arc and the weld pool, while reducing eye fatigue.

3-year warranty.

Optical class 1/1/1/1
Weight 793 g

Supplied with:
5 outer protective lenses
2 inner protective lenses
1 sweatband
1 helmet cover
1 bandana

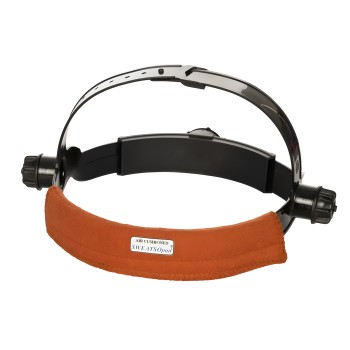

2 sweatbands are available

Front headband (front of the headband) reference 20-3100V 17
Length 17 cm x 2.5 cm wide.

Rear headband reference 203300V
Length 14 cm x 2.5 cm wide

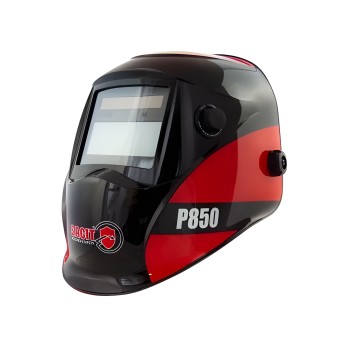

SACTI P850 welding helmet suitable for MMA welding (coated electrode), semi-automatic welding (MIG-MAG), grinding, and flame welding.

Automatically switches to a dark shade in 1/3,000 of a second.
It features the TRUE-COLOR system for a more true-to-life color vision and reduced eye strain.

Operates with a CR2032 battery (included) + solar cell.

Intensity adjustment via external button.

All Sacit® auto-darkening masks are powered by batteries and integrated solar cells, ensuring reliable operation even in non-uniform or dark environments. The use of batteries also allows for faster darkening compared to masks powered solely by solar cells.

Viewing area: 39 x 96 mm
Filter dimensions: 110 x 90 mm
Adjustable sensitivity. Protection level DIN 4/9:13 during welding operations.
Number of sensors: 2.
Adjustable headband
Optical class: 1/1/1/2
Weight: 485 g

Download the brochure

This Optrel HELIX CLT welding helmet with flip-up lens features 5 sensitivity sensors.
Amperage adjustment range: up to 280 A.
The switching time of this helmet is 0.090ms at 23°C and 0.070ms at 55°C
The EN 379 classification of this model is: 1/1/1/2
Protection level (adjustable shade): 4-12 in automatic mode or 7-12 in manual mode.
Clear shade: 2 in grinding mode for very high clarity
Weight 640 g
Temperature resistance: Welding helmet 220° and protective screen up to 137°
Suitable for MMA, MIG/MAG and TIG welding as well as plasma cutting. This helmet also features a grinding mode.
Suitable for overhead welding in constrained positions.

Delivered with:
a standard Isofit headgear, adjustable in height, width and length to fit any head shape.
Storage bag
Micro USB charging cable
Protective screen
Warranty card.

2-year warranty with 1 additional year (excluding the battery) if the product is registered within the first 6 months after purchase on www.optrel.com.

LCD WELDING MASK

Essential for safety, the GYSMATIC TRUE COLOR XXL optoelectronic welding helmet protects the welder's face and eyes from UV, infrared and spatter. Fully automatic, the mask switches from the clear state to the tinted state in a fraction of a second, from the moment the arc is struck. Supplied with a headband, it frees the welder's hands and provides all the comfort needed for welding work.

UV/IR protection level: DIN 15
Shade: adjustable from 5 to 13 - True Color Technology
Classification: 1/1/1/1
Viewing area: 100 x 83 mm
Reaction time: 0.10 ms
Settings: sensitivity, shade, delay, memory
Power supply: solar + 2 CR 2450 batteries
Weight: 680 g
Standards: EN 175 / EN 379

Applications
MMA: 5 to 400 A
TIG: 2 to 250 A
MIG/MAG: 5 to 400 A
Grinding mode (Grind)

Consumables:

Outer lens 114 x 133 mm (reference 043893)
Inner lens 106 x 89.5 mm (reference 046825)

SACIT P950 welding helmet suitable for MMA welding (stick electrode), semi-automatic welding (MIG-MAG), TIG welding> 40A, grinding work, and flame welding.

Automatically switches to a dark shade in 1/3,000,000 of a second.

It features the TRUE-COLOR system for a more true-to-life color vision and reduced eye strain.

Shade intensity adjustment via external button

Operates with a CR2450 battery (included) + solar battery.

Viewing field: 60 x 100 mm
Filter dimensions: 110 x 90 mm
Number of sensors: 4.
Optical class: 1/1/1/2.
Adjustment ranges: DIN 4/5:8 and 4/9:13
Adjustable headband
Weight: 500 g
Manufacturer warranty: 2 years

SPACEVIEW 3/5-13G AZUR TRUE COLOR XXL WELDING MASK

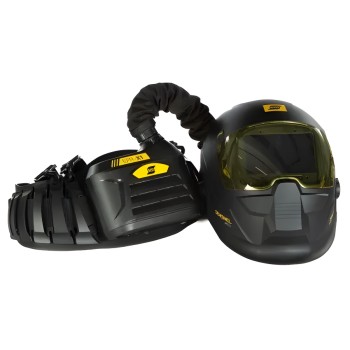

The Sentinel A60 Air welding helmet builds on the innovations of the standard Sentinel A60, taking welding to the next level. A wide panoramic view and excellent 1/1/1/1 EN optics provide an even wider view of the weld pool without any distortion.

The redesigned auto-darkening filter (ADF) features the new light control technology
with broad-spectrum OpTCS ™ from ESAB. This offers an enhanced True Color vision mode, for less eye fatigue as the working day becomes more demanding. New shade adjustment settings in 0.5 increments allow more precise vision control.

The outer shell retains Sentinel's signature design and integrates a new air diffuser screen.
The fully adjustable Halo ™ internal headband and the external grinding mode button complete the most comfortable and highest-performing lenses ever produced by ESAB.

- ADF viewing area : 118 x 71 mm (4.65 x 2.80 inches)
and intuitive ADF controls, including sensitivity and delay
- Light state range: DIN 3 / 5 – 13, adjustable in 0.5 increments and ADF with adjustable setting
- ESAB OpTCS technology with True Color Lenses
- 9 programmable memory slots
- Arc sensors: 4
- Fast switching time of 0.08 milliseconds - Battery CR2450 replaceable
- Low battery LED, grinding mode LED grinding and shade lock LED

The EPR-X1 respiratory system allows you to adjust the airflow with a simple press of a button, enabling adjustment of the flow through the P3 filter from 170 to 220 litres per minute . The system informs the user of the need to replace the filter by emitting an audible signal. The lithium-ion battery lasts up to 10 hours at 170 l/min.

The ESAB EPR-X1 PAPR unit seamlessly connects to all current ESAB PAPR welding helmets and provides advanced respiratory protection against harmful welding fume particles.

This PAPR is designed for applications ranging from occasional use to full-time industrial applications. The EPR-X1 has a robust and compact structure with a powerful fan to ensure maximum lifespan and performance. Check the battery status, fan settings and filter conditions at a glance thanks to the quick-access LED status indicators. In addition, the PAPR provides audible and vibrating alerts to inform the welder of low airflow (indicating the need to replace the filter) and low battery conditions.

The EPR-X1 turbo unit is controlled by easily accessible buttons with which three airflow speed ranges can be set: 170/190/220 l/minute. The spark arrestor and the two-stage EN12941 TH-3P certified HEPA filter are easily accessible through a removable front door.

DELIVERED COMPLETE WITH 2 AMBER REPLACEMENT EXTERNAL PROTECTION LENSES, 2 CLEAR EXTERNAL PROTECTION LENSES, 2 INTERNAL PROTECTION LENSES AND A PRACTICAL PROTECTIVE CARRYING BAG.

Welding helmet with powered air-purifying respiratory protection Protects eyes from IR/UV and the operator's respiratory tract Optimum field of view 75x112mm True-Color Technology - Optical class 1/1/1/1 Lithium battery life of approximately 8 hours - Charging time 1h 3 adjustable airflow rates to suit requirements (from 170 l/min to 230 l/min) 4 solar sensors for very high sensitivity and ultra-fast reaction time (0.08 ms) Fixed light shade: DIN 3 Variable dark shade DIN 9/12-13/15 Digital controls Grinding mode The filter is rated TH3 and retains 99.996% of welding particles Standards EN 166 / EN 175 / EN 379 / EN 12941 Supplied with respiratory protection system, lithium battery, EU charger, harness, flow meter Weight 5 kg
