Ideal for locksmiths and maintenance workshops
Welds steel, stainless steel and aluminium
MIG duty cycle: 200A at 60% / 180A at 100%
MMA duty cycle: 200A at 60% / 180A at 100%
Current range: 40 to 250A
Combines 3 welding processes in 1 product:
- MIG/MAG with gas (steel/stainless steel wire Ø 0.6/0.9 to 1.2 mm and aluminium 0.8 to 1mm)
- MIG/MAG without gas (flux-cored wire Ø 0.9 to 1.2 mm)
- MMA (basic and rutile electrode up to 5 mm)
4 drive rolls for Ø 200 mm (5 kg) or Ø 300 mm (15kg) spool
Removable MAG torch 250A (2T/4T) 3m (8mm contact tip)
Digital interface with very intuitive adjustment
Compatible with 10kVA generator
Gas cylinder holder for cylinders up to 4m3
Three-phase power supply 400 V - 16 A
Dimensions: 77 x 79x 47 cm - 48kg
IP21 rating

Delivered with:
1 x 250 A MB25 torch 3m
1 x 200 Amp earth clamp 4m
1x User manual
2x 0.8/1 mm drive rolls

Reference: 078635

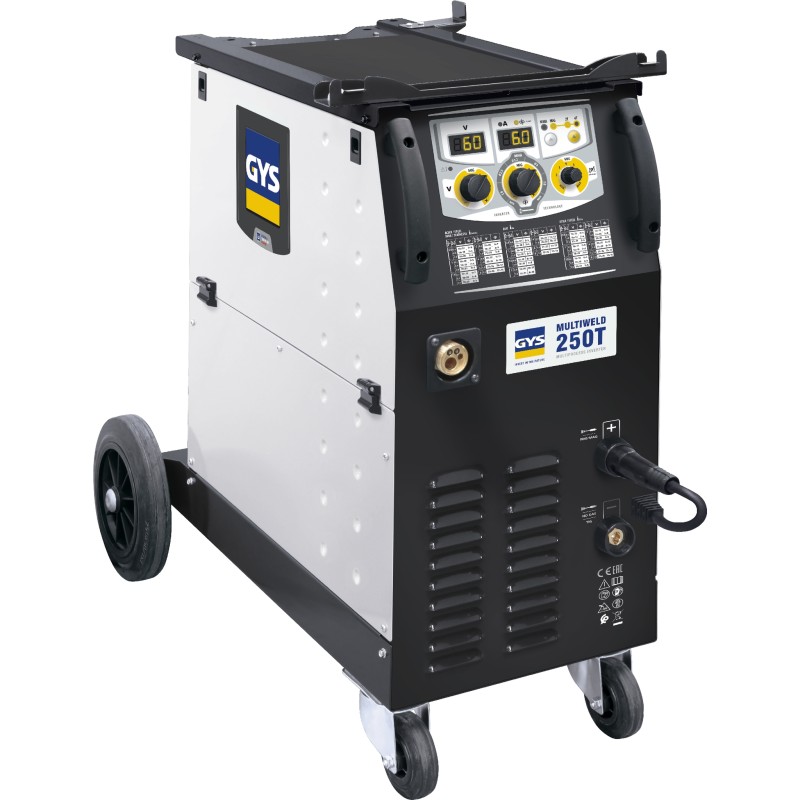

Gys MULTIWELD 250T three-phase welder with accessories

Gys
By purchasing this product you will earn 24.98 € thanks to our loyalty program. Your cart will total 24.98 €.
favorite_border favorite
€1,511.50

1 249,17 € tax excl.

Supplier stock
Dispatched within 5 to 7 days

Ideal for locksmiths and maintenance workshops
Welds steel, stainless steel and aluminium
MIG duty cycle: 200A at 60% / 180A at 100%
MMA duty cycle: 200A at 60% / 180A at 100%
Current range: 40 to 250A
Combines 3 welding processes in 1 product:
- MIG/MAG with gas (steel/stainless steel wire Ø 0.6/0.9 to 1.2 mm and aluminium 0.8 to 1mm)
- MIG/MAG without gas (flux-cored wire Ø 0.9 to 1.2 mm)
- MMA (basic and rutile electrode up to 5 mm)
4 drive rolls for Ø 200 mm (5 kg) or Ø 300 mm (15kg) spool
Removable MAG torch 250A (2T/4T) 3m (8mm contact tip)
Digital interface with very intuitive adjustment
Compatible with 10kVA generator
Gas cylinder holder for cylinders up to 4m3
Three-phase power supply 400 V - 16 A
Dimensions: 77 x 79x 47 cm - 48kg
IP21 rating

Delivered with:
1 x 250 A MB25 torch 3m
1 x 200 Amp earth clamp 4m
1x User manual
2x 0.8/1 mm drive rolls

-20%

Buy a welding machine and get 20% off all consumables on the site

By purchasing this product you will earn 24.98 € thanks to our loyalty program. Your cart will total 24.98 €.

100% secure payment in 2, 3, 4 or 10 instalments by credit card or PayPal
Secure payment methods
Expert after-sales service
Authorised Euro Welding dealer

Characteristics of Gys MULTIWELD 250T three-phase welder with accessories

Supply voltage (in Volts) 50-60 Hz 3 Ph x 400V Fuse (in Amperes) 16 A
MMA power range (in Amperes) 40 - 250 A MIG welding adjustment range (in Amperes) 40 - 250 A
Duty cycle at 40°C MMA 200 A@60% -250 A@30% MIG-MAG duty cycle at 40°C 200 A@60% -250 A@30%
Open circuit voltage (in Volts) 59 Possible electrode type Rutile - basic
Usable rutile electrode diameter (Ø) for the unit (in mm) From 1.6 to 5 mm Ø basic electrode usable by the unit (in mm) 2 to 4 mm
Uses spools of diameter Ø200 and Ø300mm Uses steel wire diameter 0.6 to 1.2 mm
Uses stainless steel wire diameter 0.8 to 1.2 mm Uses aluminum wire diameter 0.8 to 1.2 mm
Uses flux-cored wire (gasless) diameter 0.8 mm - 0.9 mm - 1.2 mm Uses CuSi3 - CuAL (Brazing) wire diameter 0.8 mm
Ventilated Yes Overvoltage thermostatic protection Yes
Nature of materials to be MMA welded Steel - Stainless steel - Cast iron Generator compatible yes +/- 15% voltage variation
Welding process MMA - MIG Warranty 2 years
Dimensions (in mm) 790 X 470 X 770 Weight in kg 40
Number of drive rolls 2 rollers Suggested generator power 10 kVA
Usage Professional
