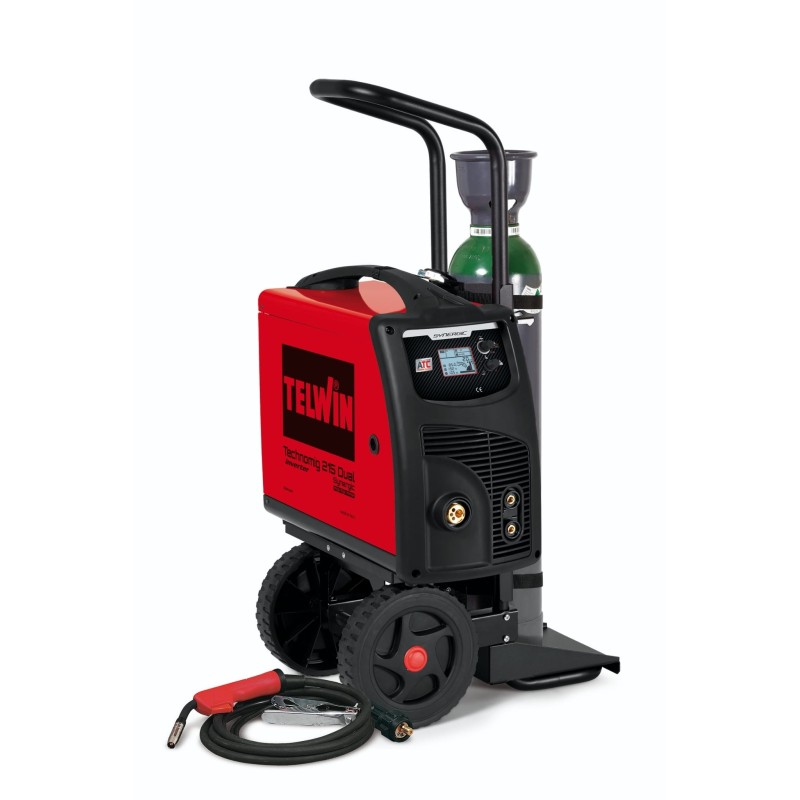

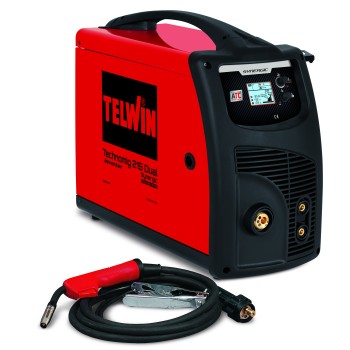

Characteristics of PACK: Telwin Technomig 215 Welder + Trolley + Regulator + Gas
| Supply voltage (in Volts) |
50 / 60 Hz - 230 Volts |
Fuse (in Amperes) |
16 A |
| MMA power range (in Amperes) |
20 - 220 A |
MIG welding adjustment range (in Amperes) |
20 - 220 A |
| TIG welding adjustment range (in Amperes) |
20 - 220 A |
Duty cycle at 40°C MMA |
150A@30 % -100 A@60 % - 80A@100% |
| MIG-MAG duty cycle at 40°C |
180 A @ 20 % -100 A @60 %-80A@100% |
Installation power (in KW) |
2 - 5 |
| Open circuit voltage (in Volts) |
78 |
Possible electrode type |
Rutile - stainless steel/cast iron - basic |
| Usable rutile electrode diameter (Ø) for the unit (in mm) |
1.6 to 4 mm |
Usable Tungsten electrode diameter (Ø) |
1 to 1.6 mm |
| Welding positions |
17 + manual adjustment |
Uses spools of diameter |
Ø200 and Ø300mm, 100 mm (adapter optional) |
| Uses steel wire diameter |
0.6 to 1 mm |
Uses stainless steel wire diameter |
0.8 - 1 mm |
| Uses aluminum wire diameter |
0.8 to 1 mm |
Uses flux-cored wire (gasless) diameter |
0.8 mm - 0.9 mm - 1.2 mm |
| Uses CuSi3 - CuAL (Brazing) wire diameter |
0.8 - 1 mm |
Ventilated |
Yes |
| Overvoltage thermostatic protection |
Yes +/- 15 % |
Generator compatible |
yes +/- 15% voltage variation |
| Welding process |
MMA - MIG - TIG |
Warranty |
2 years |
| Dimensions (in mm) |
620 X 260 XH 490 |
Weight in kg |
22 |
