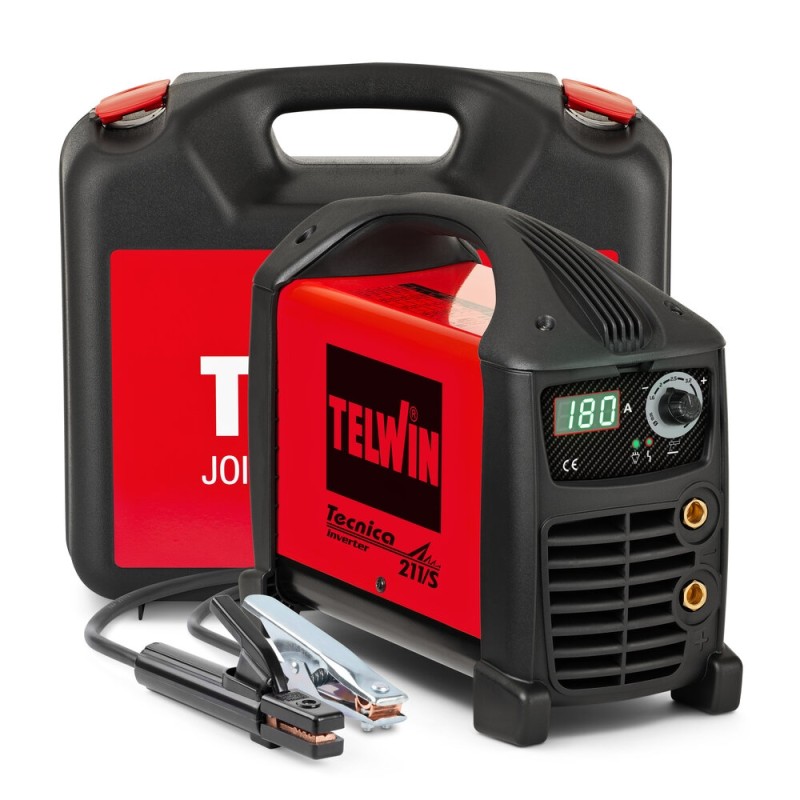

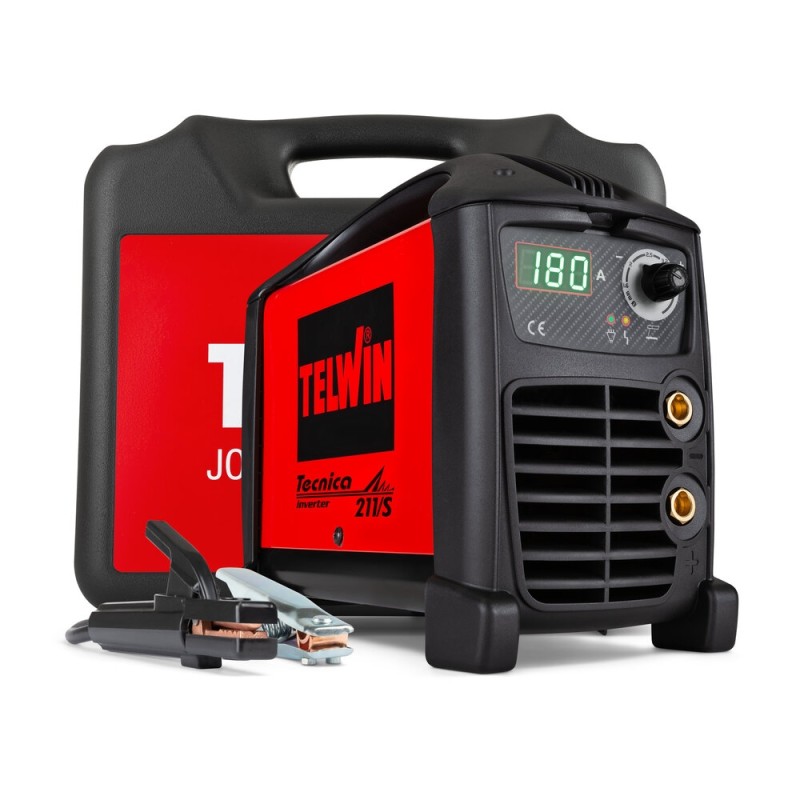

Characteristics of TELWIN - MMA Inverter welding machine Tecnica 211/S digital adjustment
| Supply voltage (in Volts) |
50 / 60 Hz - 230 Volts |
Fuse (in Amperes) |
16 A |
| MMA power range (in Amperes) |
10 - 180 A |
TIG welding adjustment range (in Amperes) |
10 - 180 A |
| Duty cycle at 40°C MMA |
180 A@20%-110 @60% - 95 A@100% |
TIG 40° DC duty cycle |
180 A@20%-110 A @60% - 95 A@100% |
| Open circuit voltage (in Volts) |
82 |
Possible electrode type |
Rutile - stainless steel/cast iron - basic, Rutile - basic |
| Usable rutile electrode diameter (Ø) for the unit (in mm) |
From 1.6 to 4 mm |
Usable Tungsten electrode diameter (Ø) |
1 to 2.4 mm, 1 to 1.6 mm |
| Nature of materials to be TIG welded |
steel, stainless steel, copper, cast iron, titanium, nickel |
Ventilated |
Yes |
| Overvoltage thermostatic protection |
Yes +/- 15 % |
Nature of materials to be MMA welded |
Steel - Stainless steel - Cast iron |
| Generator compatible |
Yes |
Equipment |
Delivered in a case with ground clamp and electrode holder |
| Welding process |
MMA / TIG CONTACT |
Warranty |
2 years |
| Dimensions (in mm) |
425 X 175 X H320 |
Weight in kg |
5,8 |
| Protection rating |
IP23 |
Suggested generator power |
7.5 kW -9 KVA |
| TIG ignition type |
TIG Lift |
Delivered in a carry case |
Yes |
| Usage |
DIY |
Max MMA Power |
200 A Max |
